BZ Pillar Mounted Jib Crane

Product Type:	BZ
Lifting Capacity:	0.5~16ton
Effective Radius:	1~12m
Lifting Height:	According to your demands
Working Class:	A3 A4
Ambient Temperature:	-20~40℃

Customized one is available, just contact us with your detailed requirements.

Overview

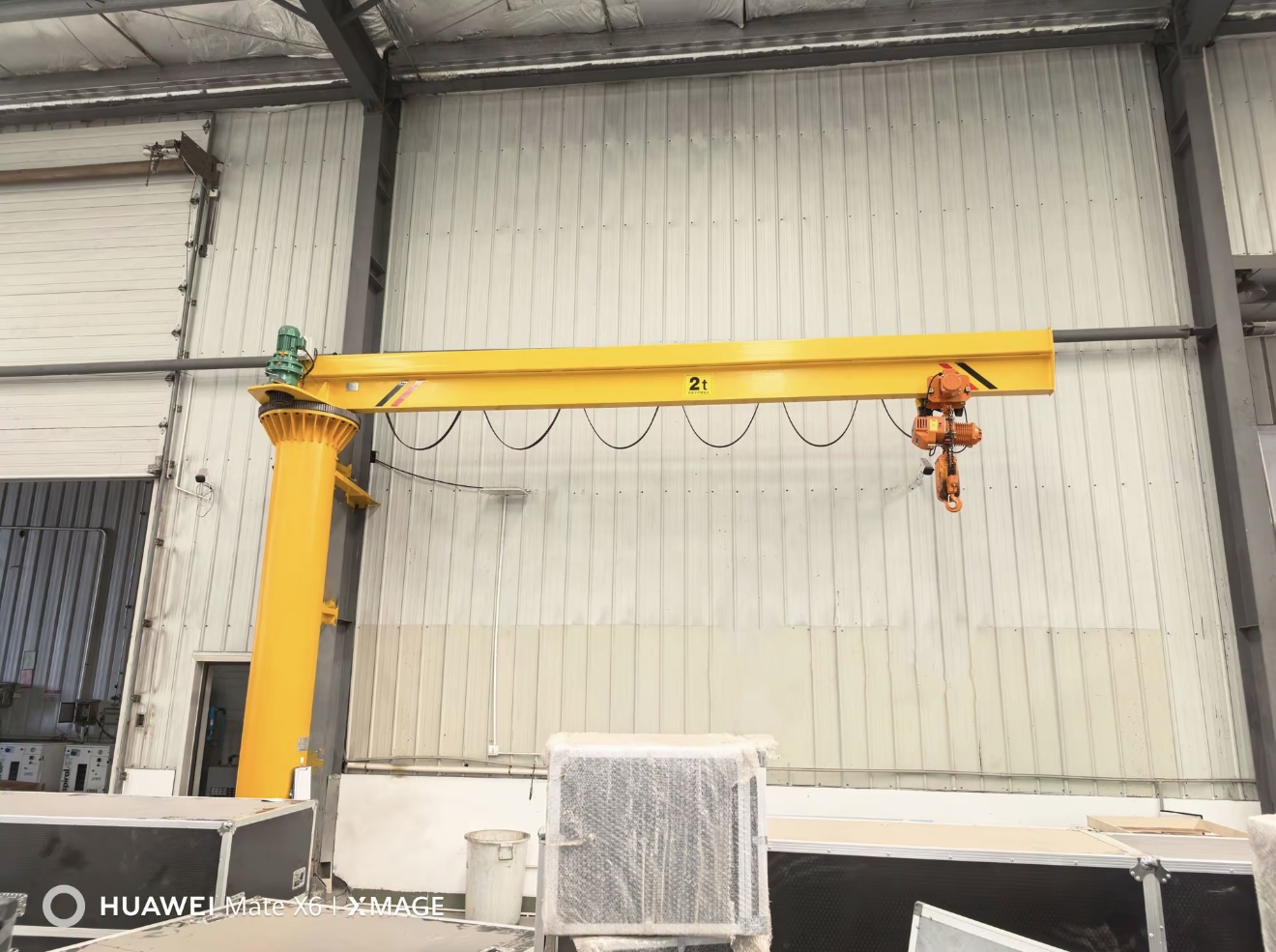

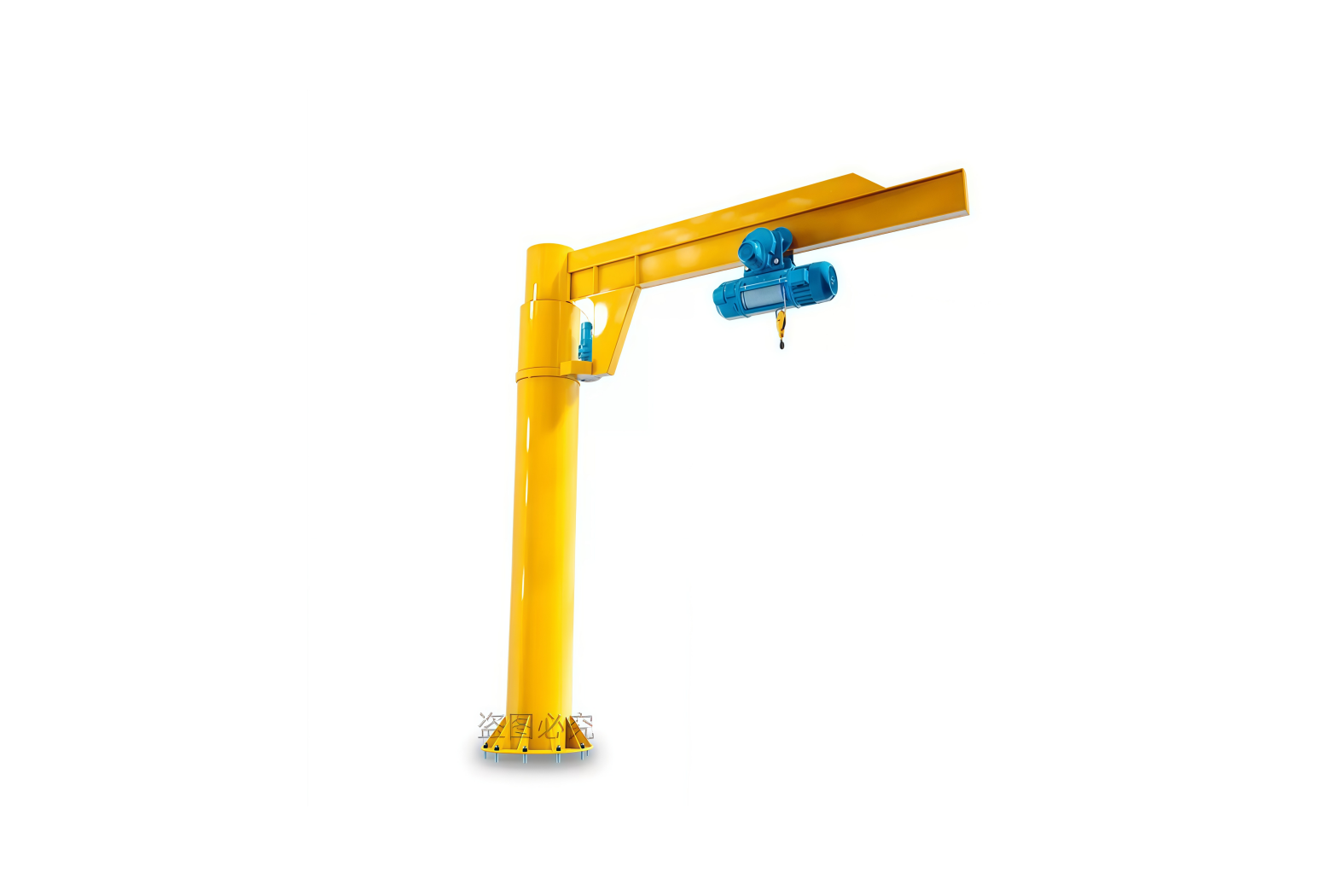

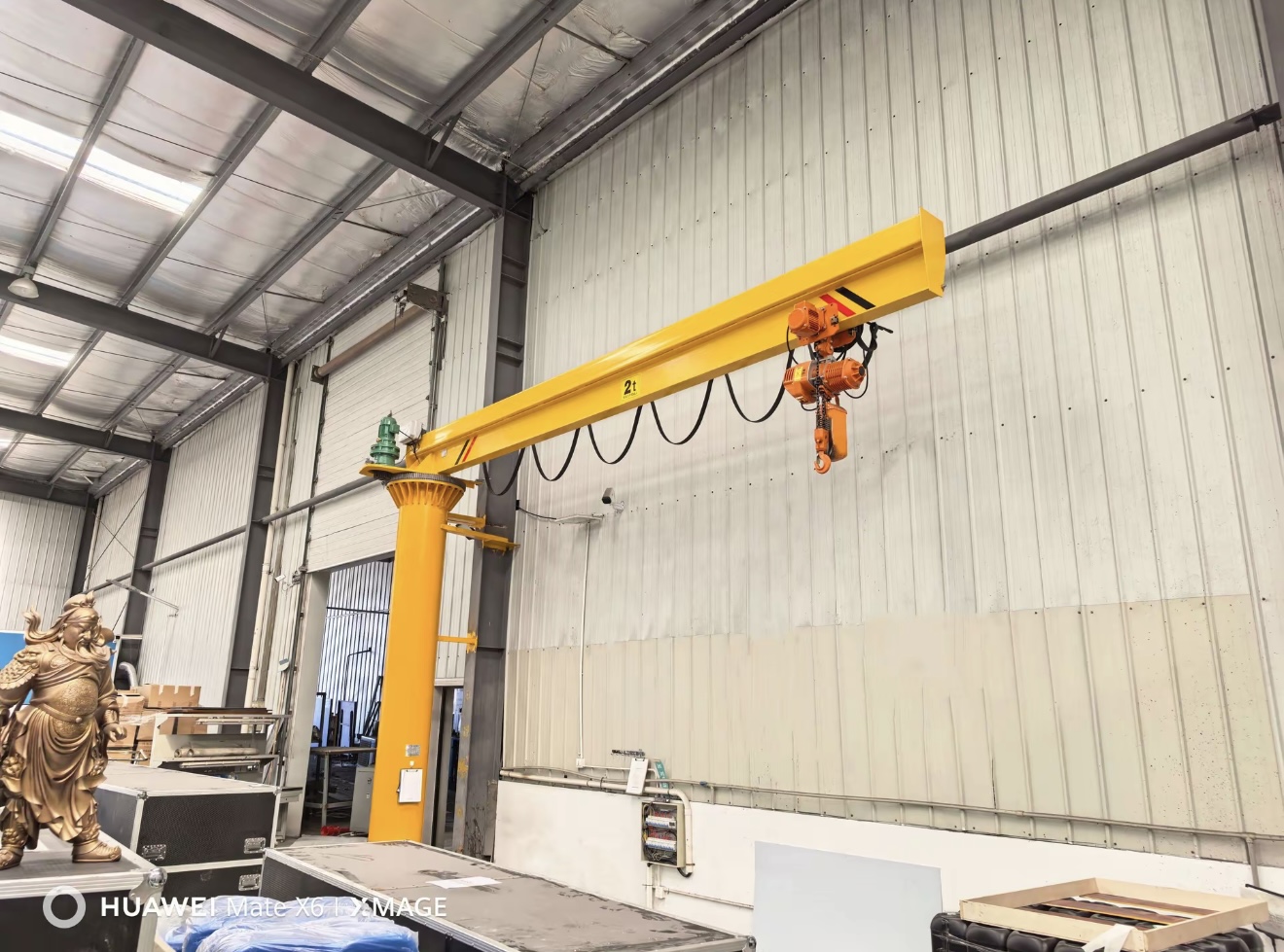

BZ pillar mounted jib crane is a light-duty lifting equipment, installed on the ground concrete pillar. It features compact structure and 360° rotation, suitable for local material handling in workshops, warehouses and maintenance stations.

Introduction

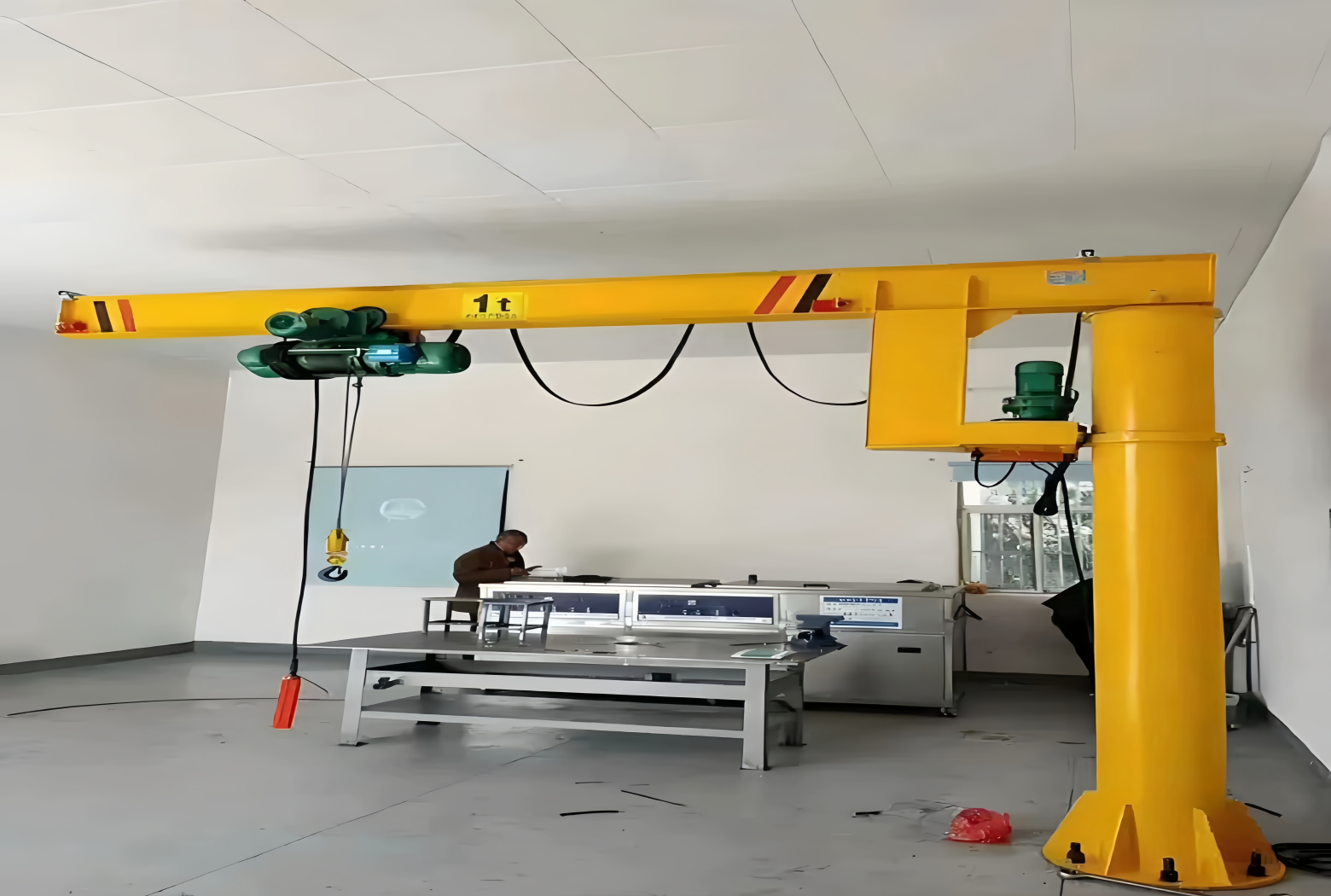

This crane adopts electric hoist as the lifting mechanism, with simple installation and flexible operation. It is applicable for lifting loads of 0.5-10 tons in fixed working areas, effectively improving local handling efficiency.

Features

Pillar-mounted design, no occupying overhead space

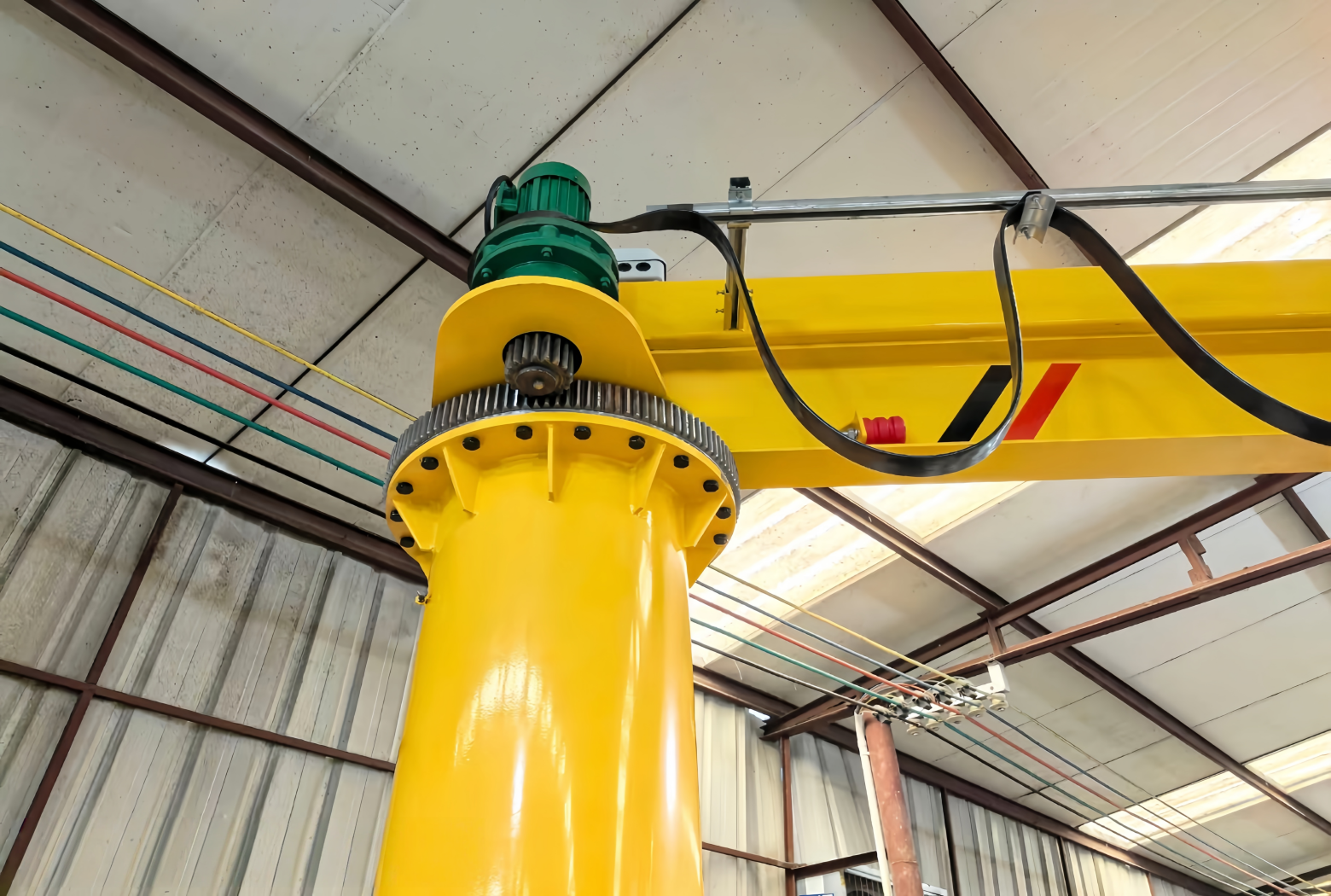

360° full rotation, wide coverage of working area
Light weight, simple structure, easy maintenance
Equipped with safety devices to ensure operation safety

Specification

Working Class		A3,A4,A5
Capacity	t	0.5~16
Effective Radius	m	1~8
Lifting Height		3~100
Lifting Speed	m/min	0.33~8,Single or Dual Speed
Trolley Travelling Speed	m/min	2~30,Single or Dual Speed
Rotation Speed	r/min	0.5~1
Rotation angle	°	0~360
Power Supply		380V 50HZ 3Phase or Customized
Temperature	℃	-20~60
Protection Grade		IP44~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.
