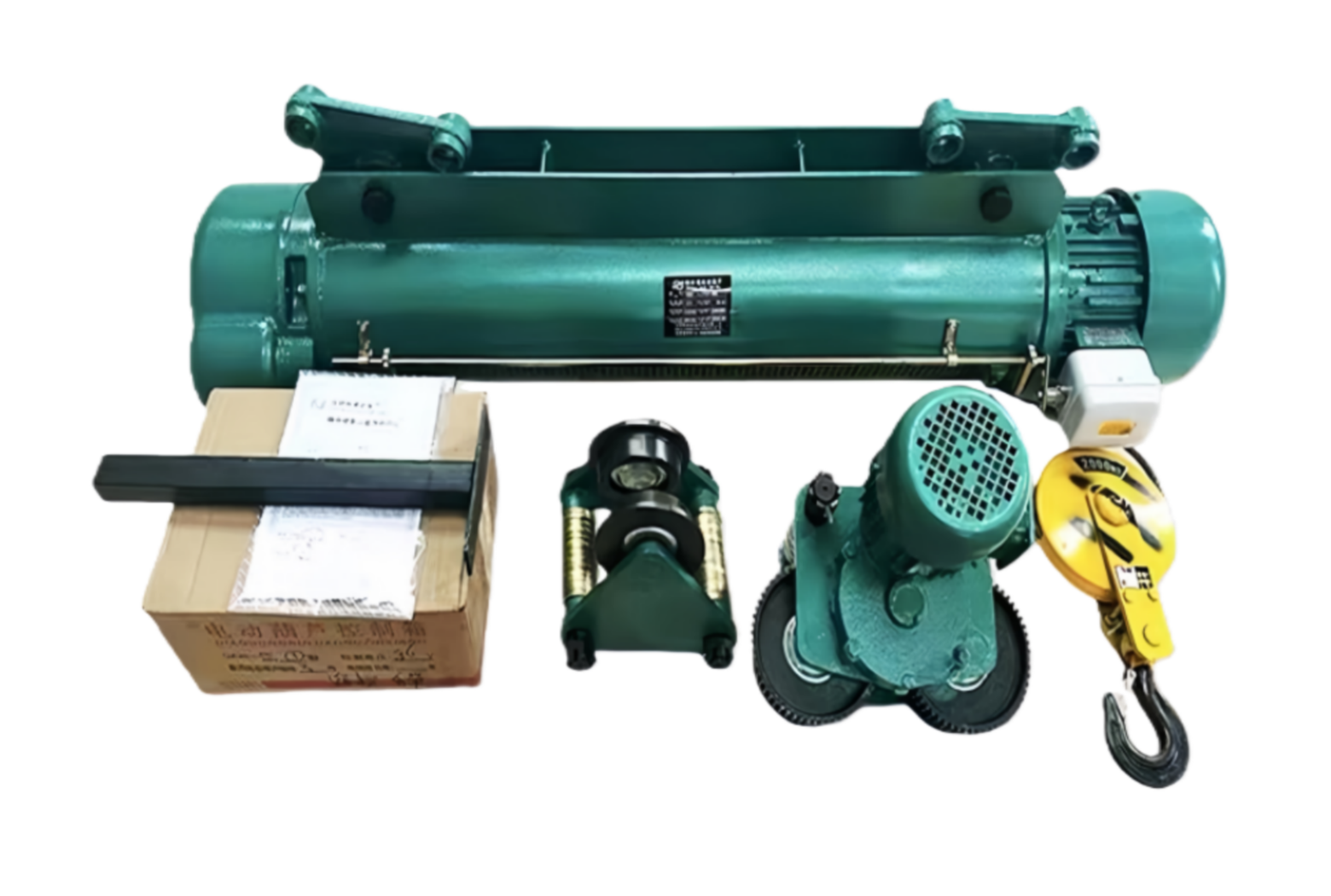

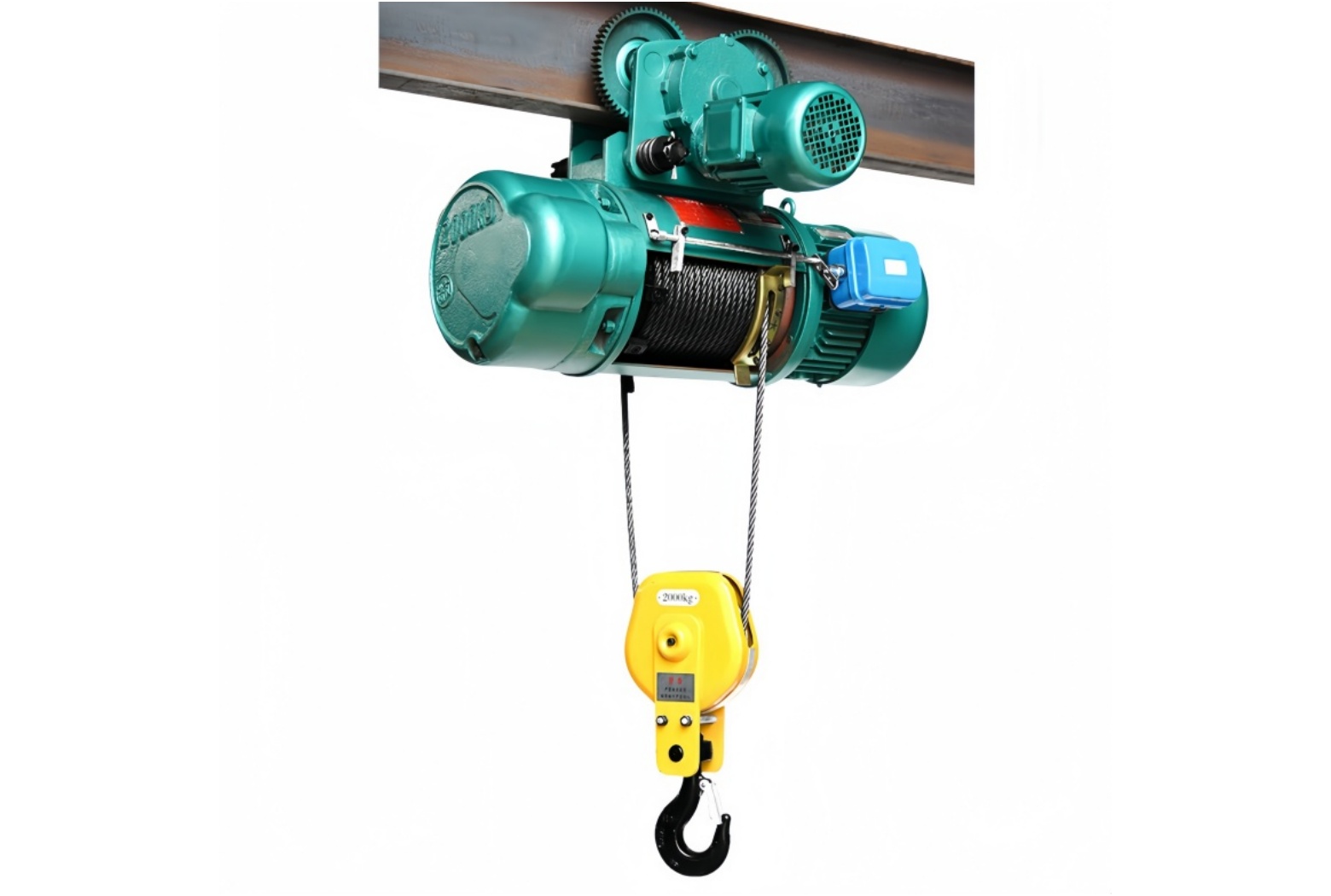

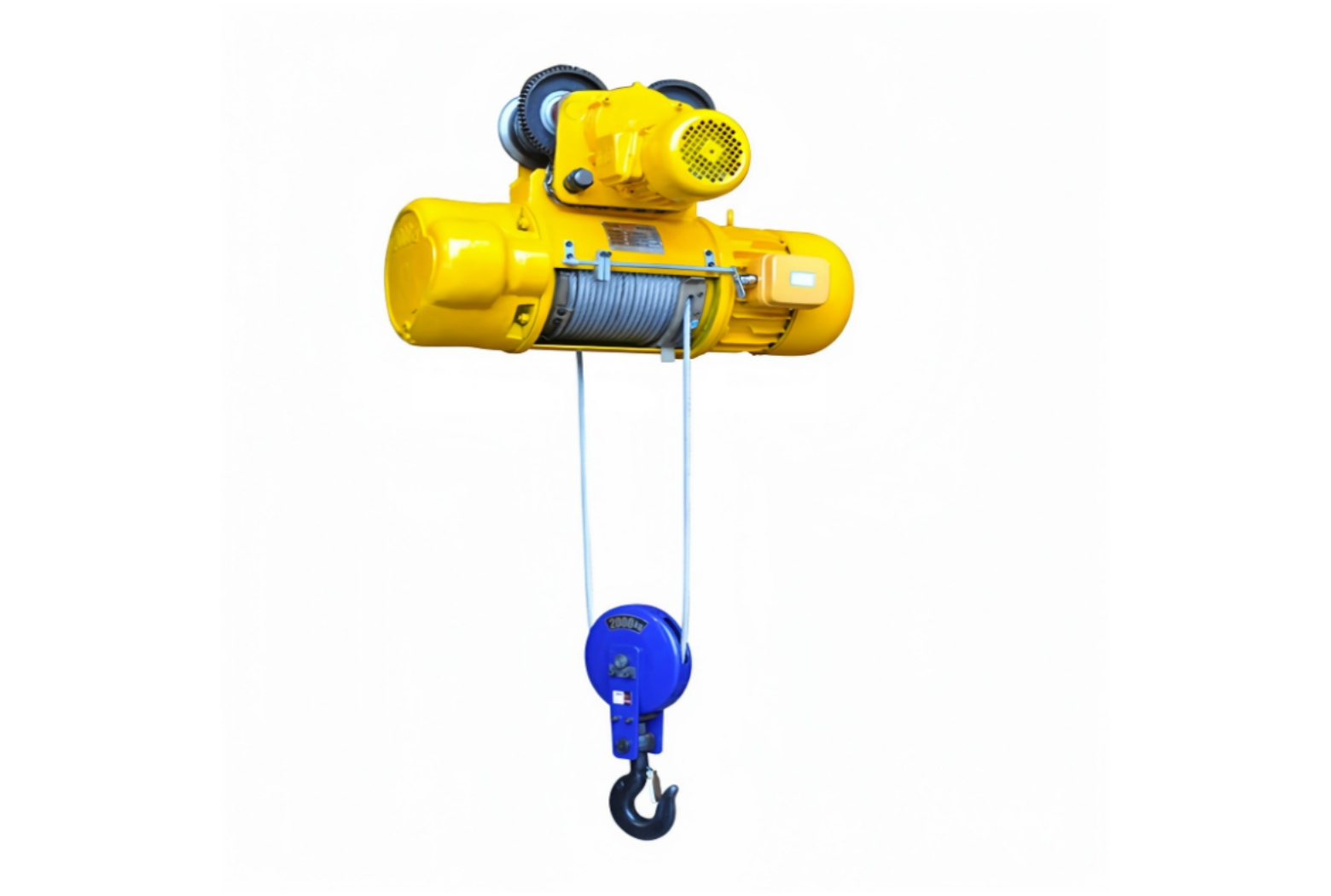

CD Single Speed Wire Rope Electric Hoist

CD Single Speed Wire Rope Electric Hoist

Product Type:	CD
Lifting Capacity:	0.25~32 tons
Span:	/
Lifting Height:	6~50 m
Working Class:	M3,M4
Ambient Temperature:	-20~40℃

Customized one is available, just contact us with your detailed requirements.

Overview

CD single speed wire rope electric hoist is a light-duty lifting component, widely used with overhead cranes, gantry cranes and jib cranes for material lifting in workshops, warehouses and construction sites.

Introduction

Adopting single-speed lifting design, this hoist complies with national standards. It features compact structure and reliable performance, suitable for 0.5-32 tons load lifting, meeting regular material handling needs.

Features

Single-speed operation, stable lifting and low failure rate
High-strength wire rope, strong load-bearing capacity and long service life
Compact structure, easy installation and maintenance
Equipped with overload and limit devices, safe and reliable

Specification

Model		CD1
Capacity		Tons	0.25	0.5	1	2	3	5	10	16
Hoisting height		M	3,6,9	6,9,12	6,9,12,18,24,30				9,12,18,24,30
Hoisting speed		M/MIN	8	8	8				7	3.5
Travel speed		M/MIN	20	20/30	20/30	20/30	20/30	20/30	20/30	18
Wirerope		Dia.(mm)	3.6	4.8	7.4	11	13	15	15	17.5
Wirerope		Spec.	6×39	6×37+FC	6×37+FC				6×37+FC	6×37+FC
Hoisting motor	Type	Type	ZD112-4	ZD1 21-4	ZD1 22-4	ZD1 31-4	ZD1 32-4	ZD1 41-4	ZD1 51-4	ZD1 52-4
	Power	Power(kW)	0.4	0.8	1.5	3.0	4.5	7.5	13	18.5
	Rotation speed	Rotation speed(r/min)	1380	1380	1380	1380	1380	1400	1400	1400
	Current	(A)	1.25	2.2	4.3	7.6	11	18	30	30
Travel motor	Type	Type	ZDY1 10-4	ZDY1 11-4	ZDY1 11-4	ZDY1 12-4	ZDY1 12-4	ZDY1 21-4	ZDY1 21-4	ZDY1 21-4
	Power	Power(kW)	0.06	0.2	0.2	0.4	0.4	0.8	0.8×2	0.8×2
	Rotation speed	Rotation speed(r/min)	1400	1380	1380	1380	1380	1380	1380	1380
	Current	Current(A)	0.3	0.72	0.72	1.25	1.25	2.4	2.4	2.4
Power			AC 380V,50HZ,3P
