Overview
FEM Europe Standard Double Girder Overhead Crane is a heavy-duty lifting solution fully compliant with FEM European norms. It boasts robust structural design, high load-bearing capacity and reliable safety performance, tailored for medium to heavy-duty material handling scenarios in European industrial plants, metallurgical facilities, logistics hubs and large-scale manufacturing workshops. As a market-oriented product meeting international standards, it seamlessly adapts to local safety, environmental and operational requirements.
Introduction
This crane is engineered in strict accordance with FEM 9.221, FEM 9.301 and other relevant European standards, and is CE certified for legal entry into the European market. It adopts high-grade structural steel and precision components, with a double-girder structure optimized via finite element analysis to ensure excellent stability under heavy loads. Equipped with a high-efficiency winch trolley as the core lifting mechanism, it supports customized configurations of span, lifting height and operation mode, effectively meeting diverse heavy-load handling needs of European customers.
Features
-
Full compliance with FEM European standards and CE certified, ensuring legal operation and product reliability in the European market
-
Reinforced double-girder structure, strong load-bearing capacity, small deflection and high operational stability
-
High-precision transmission system with European standard motors and reducers, featuring low noise, high efficiency and long service life
-
Comprehensive safety protection system, including overload limiter, lifting height limiter, anti-collision device and emergency stop system
-
Flexible operation modes, with ergonomic design to reduce operator labor intensity
Specification
| Working Class |
|
A5-A8 |
| Capacity |
t |
5~320 |
| Span |
m |
5~60 |
| Lifting Height |
m |
3~100 |
| Lifting Speed |
m/min |
0.8~8,Dual Speed or VFD |
| Trolley Travelling Speed |
m/min |
2~20，VFD |
| Crane Travelling Speed |
m/min |
4~40，VFD |
| Control Method |
|
Ground or Cab Control |
| Power Supply |
|
380V 50HZ 3PHASE or Customized |
| Temperature |
℃ |
-20~60 |
| Protection Grade |
|
IP54~65 |
| The above are standard parameters, and customized solutions and designs are provided according to your actual needs. |
Structural Component
-
Double Main Girders: High-strength Q355B box girders, welded by automatic submerged arc welding and tempered to eliminate internal stress, with European standard anti-corrosion coating
-
Winch Trolley: Core lifting component, equipped with European standard high-torque motor, hard-tooth surface reducer and reliable braking system
-
End Carriages: Heavy-duty integrated casting structure, matched with precision roller bearings and European standard travel mechanism for smooth and stable movement
-
Control System: Adopts European standard electrical components (Siemens/Schneider optional), with IP54 protection level, suitable for harsh industrial environments
-
Safety Devices: CE-certified safety components, including overload limiter, limit switch and emergency stop button, forming a multi-layer safety protection network

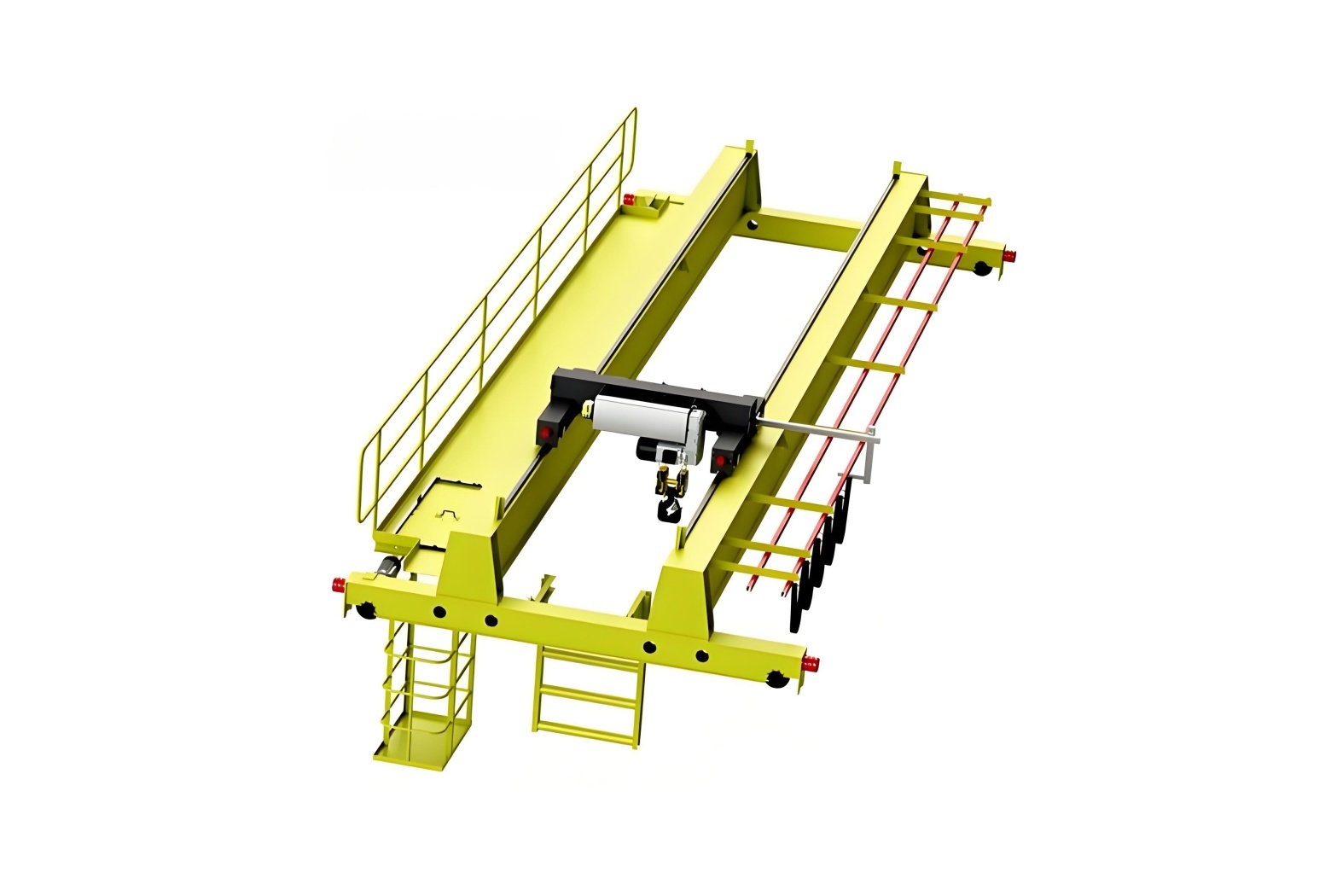

Product Sketch
