Overview
FEM Europe Standard Single Girder Overhead Crane is a high-performance lifting equipment designed in full compliance with FEM European standards. It features a compact structure, reliable performance and excellent safety, specifically tailored for the European market and enterprises with international operation requirements. Suitable for light to medium-duty material handling in workshops, warehouses, logistics centers and assembly lines across various industries.
Introduction
Adhering to FEM 9.221, FEM 9.301 and other relevant European standards, this crane adopts high-quality structural materials and precision components. The core lifting mechanism is equipped with a high-efficiency electric hoist, ensuring stable and smooth operation. It supports flexible operation modes and can be customized according to actual working conditions such as span and lifting height, fully meeting the diverse material handling needs of European customers while complying with local safety and environmental regulations.
Features
-
Full compliance with FEM European standards, with CE certification, eligible for entry into the European market
-
Optimized single-girder structure, light dead weight, small wheel pressure, saving workshop space and construction costs
-
High-precision transmission system, low noise during operation, high lifting efficiency and stable performance
-
Complete safety protection system, including overload limiter, lifting height limiter, emergency stop device, etc., ensuring operation safety
-
Flexible operation modes (wireless remote control/pendant control), easy to operate and reduce labor intensity
Specification
| European Type Single Girder Overhead Crane |
| Working Class |
|
A5-A7 |
| Capacity |
t |
1~25 |
| Span |
m |
3~35 |
| Lifting Height |
m |
3-100 |
| Lifting Speed |
m/min |
0.8/5,dual speed |
| Trolley Travelling Speed |
m/min |
3~30,VFD control |
| Crane Travelling Speed |
m/min |
3~30,VFD control |
| Control Method |
|
Ground or Cab Control |
| Power Supply |
|
380V 50HZ 3PHASE or Customized |
| Temperature |
℃ |
-20~60 |
| Protection Grade |
|
IP54~65 |
| The above are standard parameters, and customized solutions and designs are provided according to your actual needs. |
Structural Component
-
Main Girder: High-strength Q355B steel, welded and tempered to eliminate internal stress, with anti-corrosion coating meeting European environmental standards
-
Electric Hoist: European standard high-efficiency hoist, with compact structure and reliable braking performance
-
End Carriage: Integrated casting structure, equipped with precision bearings and European standard travel motor, ensuring smooth movement
-
Control System: European standard electrical components (Siemens/Schneider optional), with stable performance and strong anti-interference ability
-
Safety Devices: CE-certified overload limiter and position limiter, providing all-round safety protection

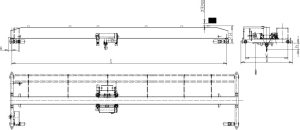

Product Sketch
