HC large-tonnage electric hoist

Parameter Specification
Rated Lifting Capacity 10-100 t
Lifting Height 6-30 m (Customizable)
Lifting Speed 0.8-8 m/min (Customizable)
Power Supply 380V/50Hz, 3-Phase 5-Wire

Customized one is available, just contact us with your detailed requirements.

SEND INQUIRY

Overview

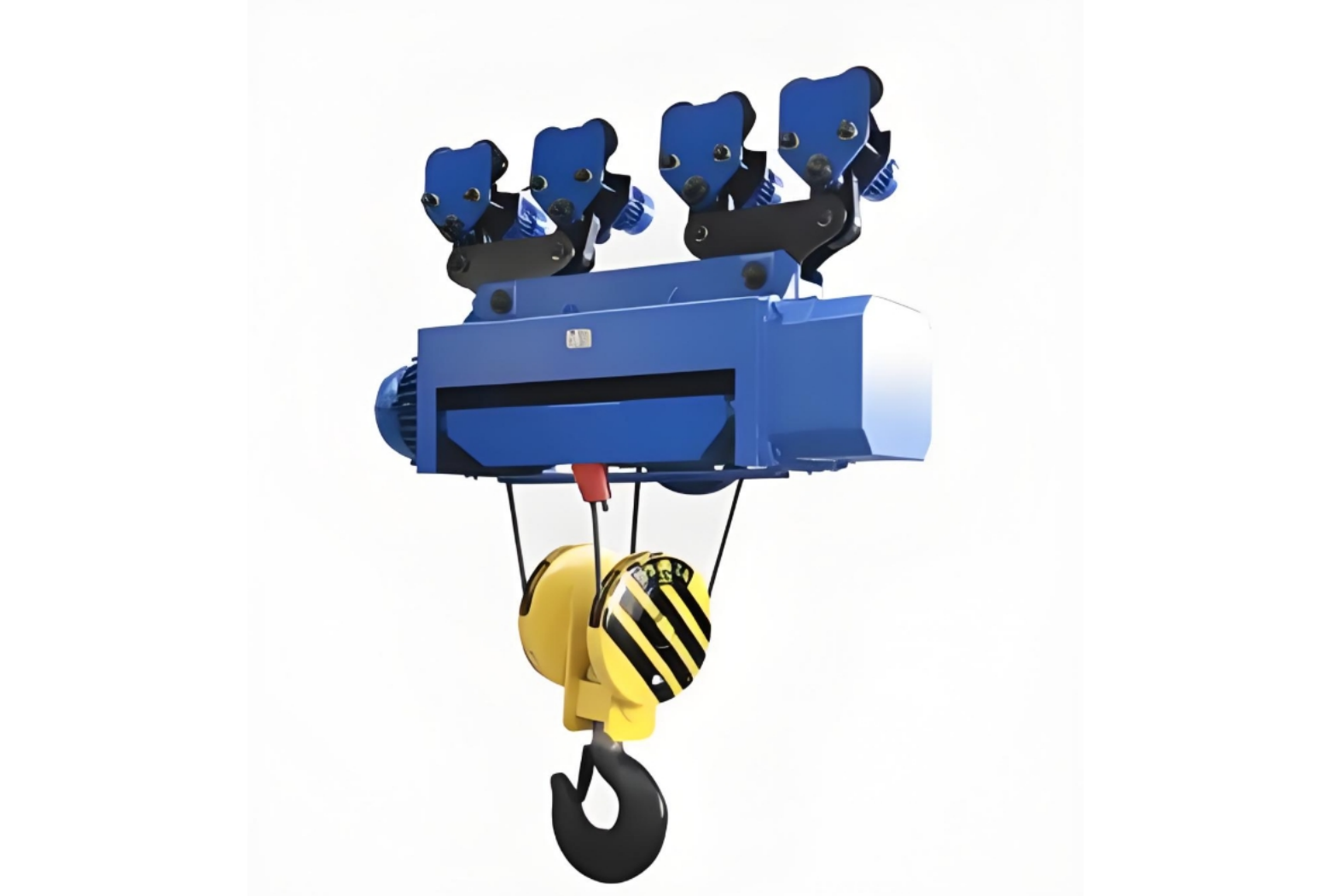

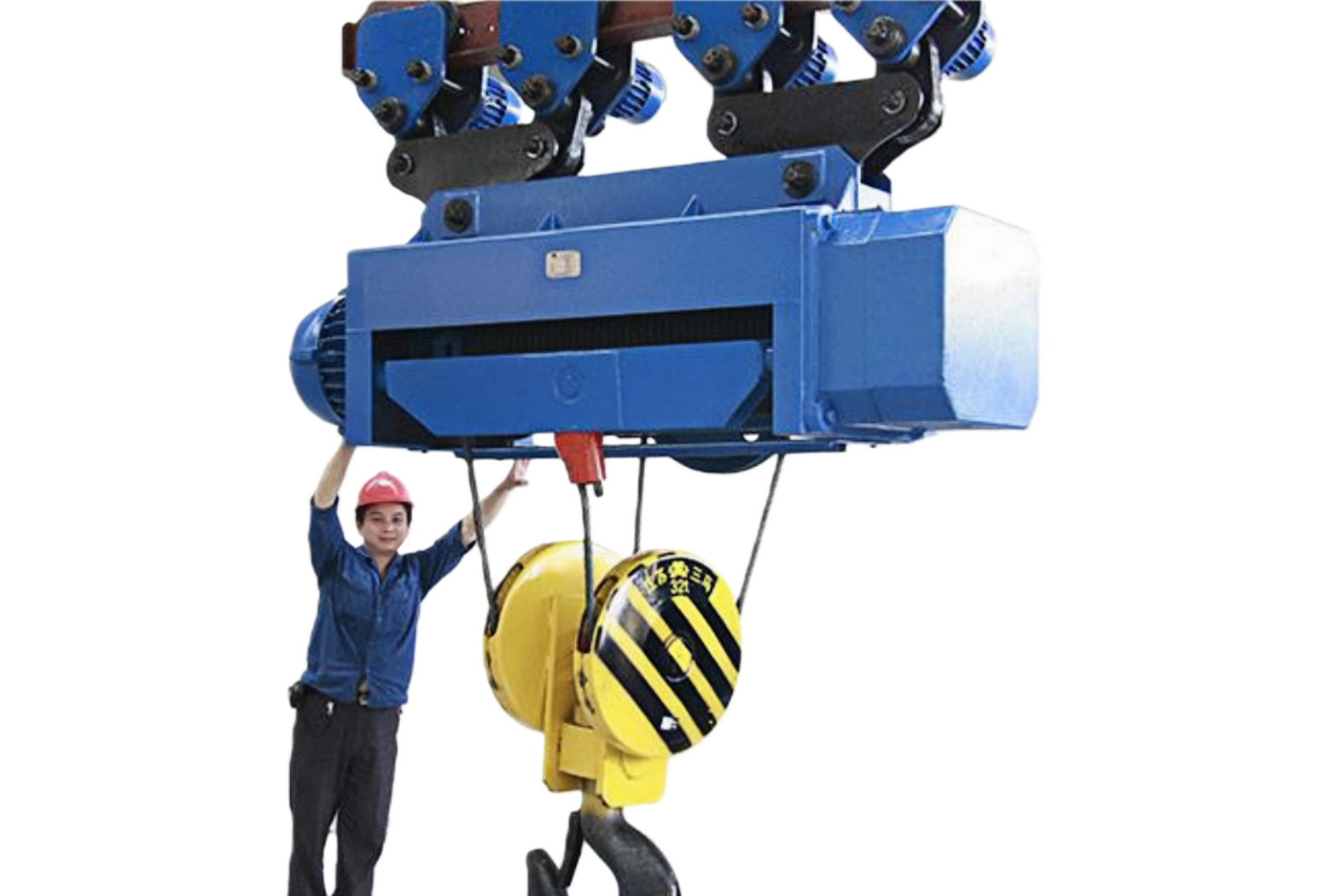

HC square box electric hoist is a heavy-duty lifting component with a square box-shaped reducer structure. It is widely matched with overhead and gantry cranes for heavy-load handling in workshops, steel plants and logistics yards.

Introduction

Designed for heavy-duty working conditions and complying with relevant standards, this hoist features strong load-bearing capacity and stable performance. Suitable for 10-100 tons load lifting, it meets high-intensity material handling needs.

Features

  • Square box reducer structure, high rigidity and stable transmission
  • Heavy-duty design, strong load-bearing capacity and long service life
  • Compact layout, easy installation and maintenance
  • Equipped with overload and limit devices, safe and reliable

Specification

Rated lifting capacity 16t | 20t | 32t | 50t | 80t | 100t | customizable
Lifting height 6m | 9m | 12m | 18m | 24m | 30m | customizable
Lifting speed (normal speed) 1.0~7.0 m/min
Lifting speed (slow speed) 0.1~1.0 m/min
Power supply 3P 380V/50Hz
Wire rope specification Ø20mm ~ Ø36mm（6×36WS+FC）
Cylinder diameter Ø500mm ~ Ø1200mm
Wheel diameter Ø200mm ~ Ø400mm
Railway track model QU70 | QU80 | QU100 | QU120
Safety device Limit switch | Overload limiter | Phase sequence protection | Emergency stop
Working temperature -20℃ ~ +60℃

Structural Component

  • Square Box Reducer: Core transmission component, high rigidity
  • Heavy-Duty Motor: High-power, adapted to heavy-load working conditions
  • High-Strength Wire Rope: Core lifting part, wear-resistant
  • Control System: Pendant or remote control, simple operation
