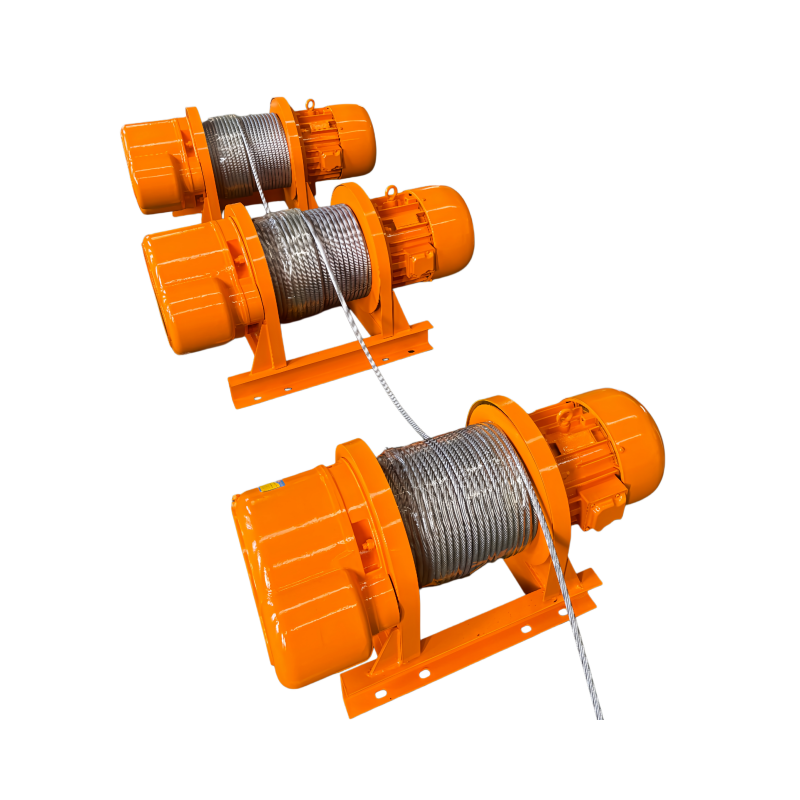

Heavy Hoist Winches

Product Type:	Single-line type
Lifting Capacity:	1-16 t
Span:	/
Lifting Height:	According to your demands
Working Class:	M3,M4,M5
Ambient Temperature:	-20~60℃

Customized one is available, just contact us with your detailed requirements.

Overview

This product is a new type of lifting equipment that combines the hoisting mechanism of CD1/MD1 electric hoists with the functionality of a winch. Featuring an inline structure with coaxial arrangement of motor, gearbox, and drum, it integrates the mature technology of electric hoists with the large rope capacity of winches, ideal for space-constrained environments requiring long-distance traction or vertical lifting.

Introduction

Based on the hoisting mechanism of electric hoists, the Inline Electric Hoist Type Winch removes the traveling trolley and is directly mounted on a fixed base. The motor drives the drum through the gearbox to wind and unwind the wire rope. Compared to traditional winches, it offers a more compact structure and higher transmission efficiency; compared to ordinary electric hoists, it provides larger rope capacity and wider adaptability.

Features

Mature Technology Integration: Utilizes core components from CD1/MD1 electric hoist hoisting mechanisms, ensuring reliable performance, stability, and easy maintenance.

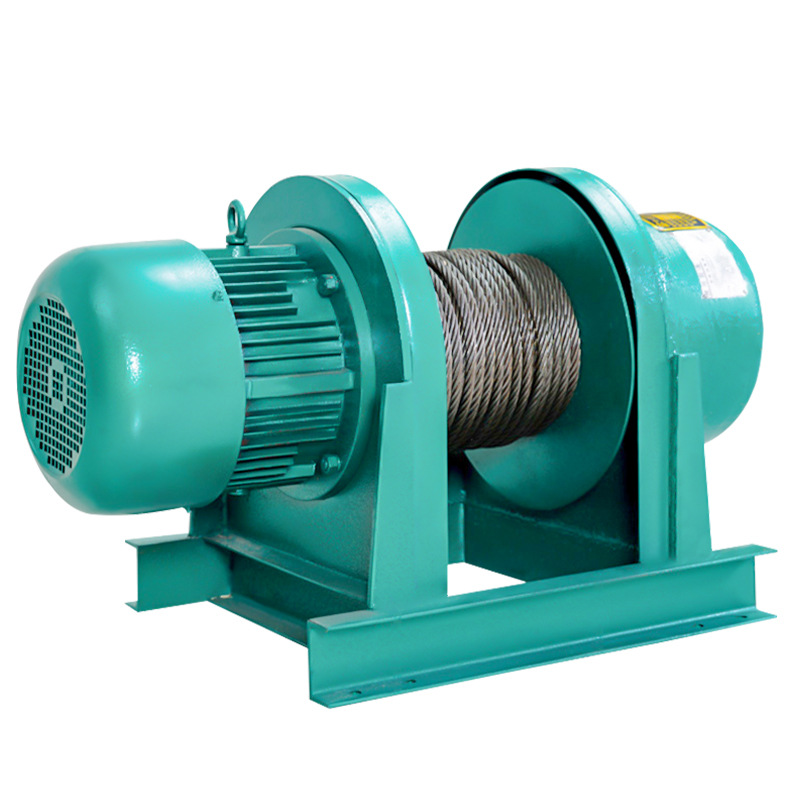

Compact Inline Structure: Coaxial arrangement of motor, gearbox, and drum minimizes overall width, saving installation space.

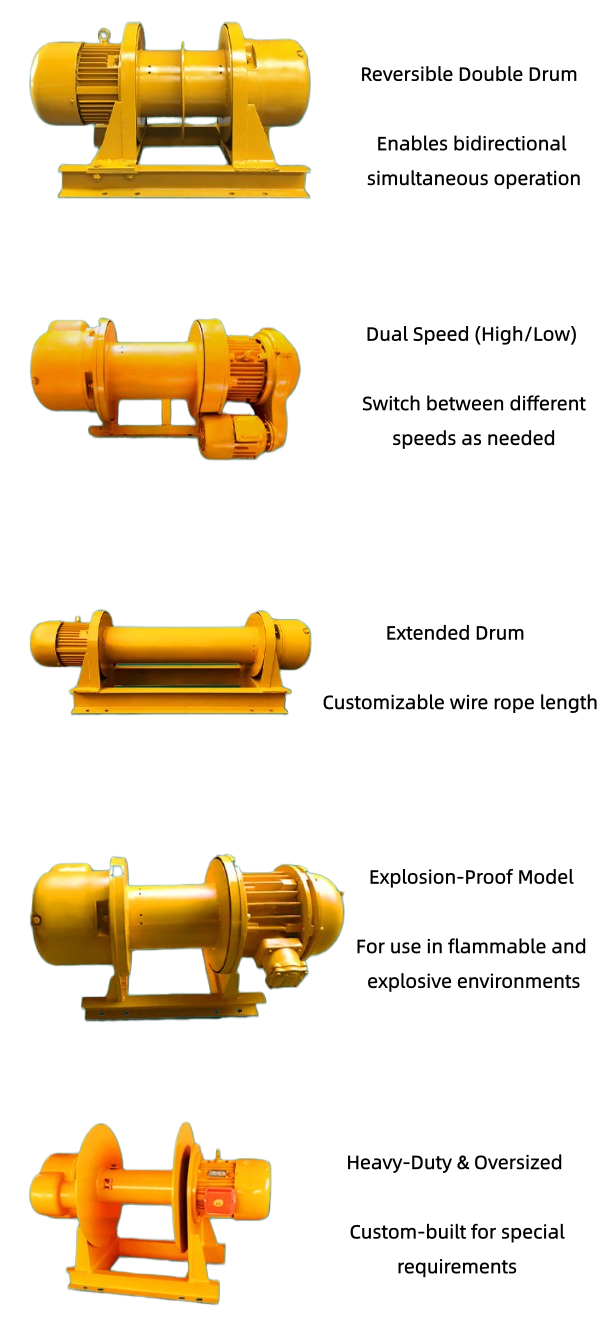

Optional Dual Speed: MD1 dual-speed motor option enables slow speed for precise positioning and fast speed for empty hook descent, improving operational efficiency.
Conical Rotor Brake: Integrated brake within the conical rotor motor provides reliable braking, simple structure, and low failure rate.
Large Rope Capacity: Drum length can be customized to meet long-distance traction or deep well lifting requirements.
Multiple Installation Options: Can be fixed with anchor bolts or customized with special bases according to user requirements.

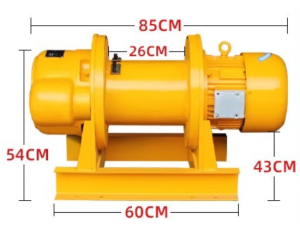

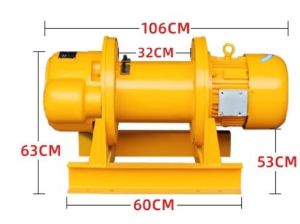

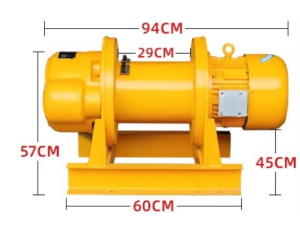

Specifications

Item	Unit	Range
Lifting Capacity	t	0.5 / 1 / 2 / 3 / 5 / 10 /16
Lifting Height	m	6 / 9 / 12 / 18 / 24 / 30 (higher customizable)
Lifting Speed	m/min	Single speed: 16; Dual speed: 16/1.6
Rope Diameter	mm	φ7.1 – φ25 (depends on capacity)
Rope Capacity	m	Up to 100m+ (customized)
Motor Power	kW	0.8 – 18.5 (depends on capacity)
Power Supply	V	380V 50Hz (other voltages customizable)
Duty Class	–	M3 / M4
Brake Type	–	Integrated conical rotor brake
Protection Class	–	IP44 / IP54

Structural Components

Hoisting Motor: Conical rotor motor with integrated brake; axial rotor movement during power-on releases brake, spring pressure applies brake when power is off.
Gearbox: Three-stage parallel shaft helical gear transmission with precision-machined gears for smooth operation and low noise.

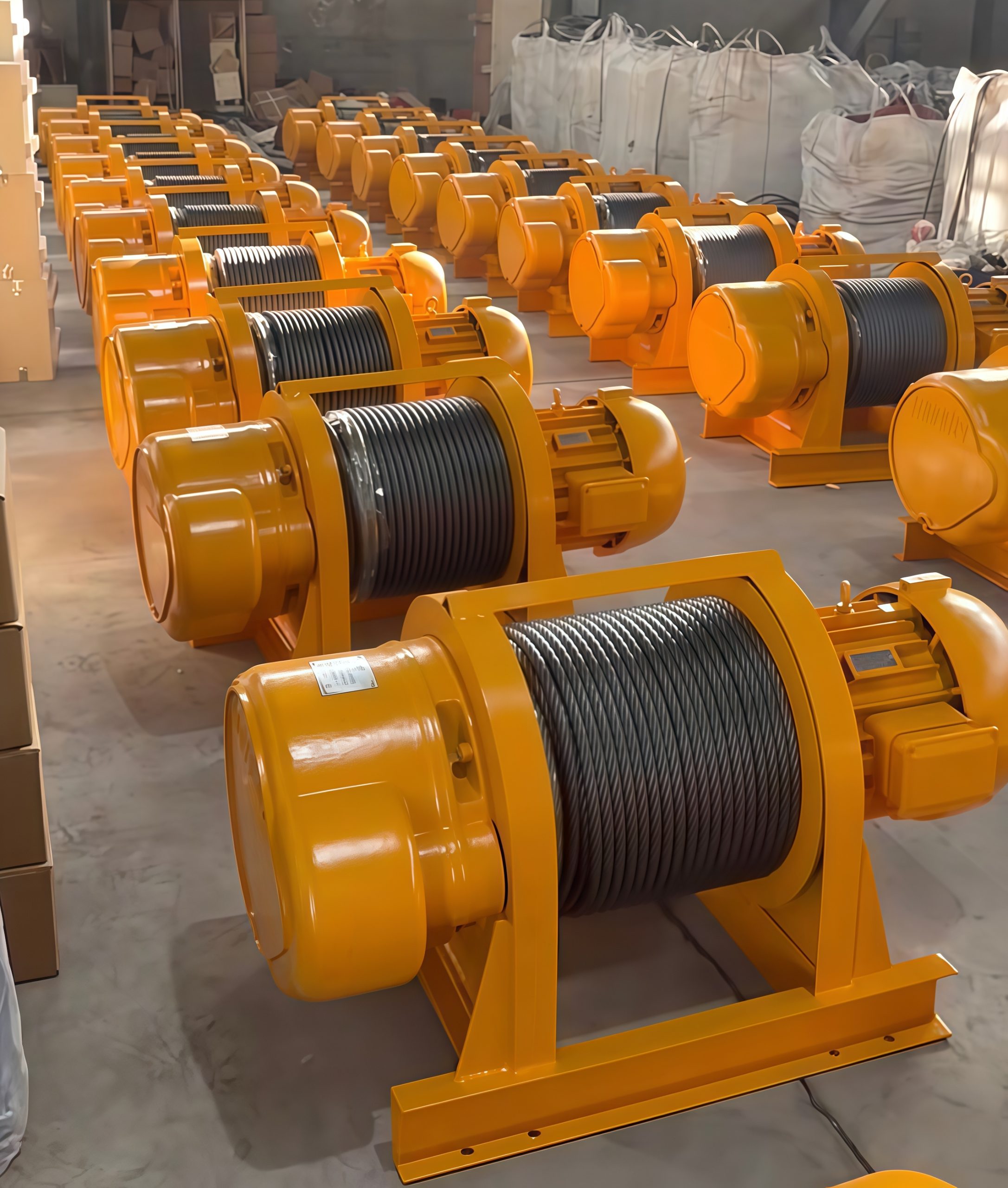

Drum Assembly: Wire rope arranged in spiral grooves; both ends secured with press plates to prevent loosening.

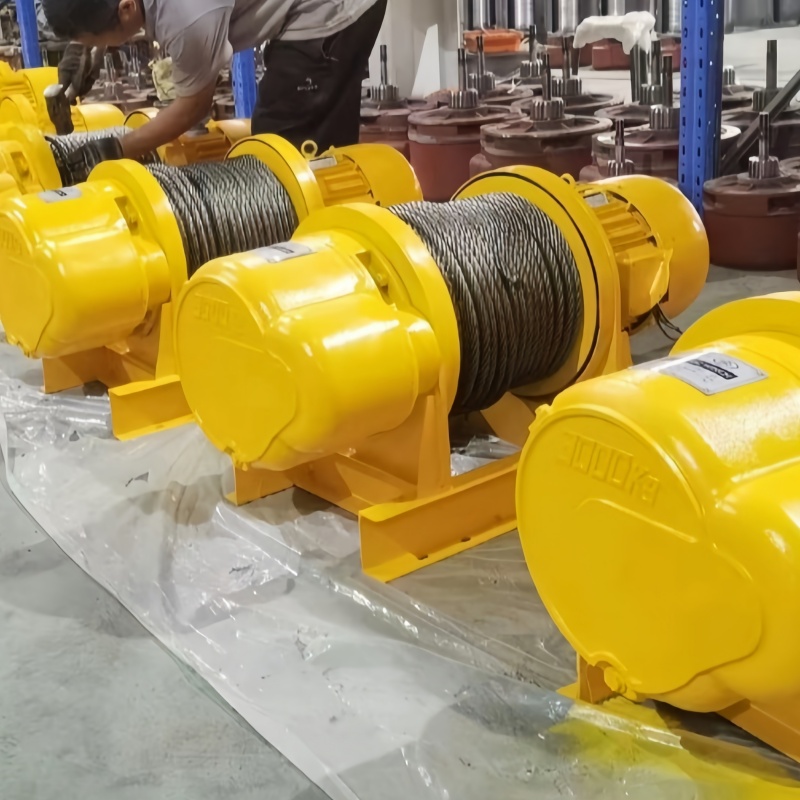

Wire Rope: Cross-wound steel wire rope with high safety factor and good wear resistance.

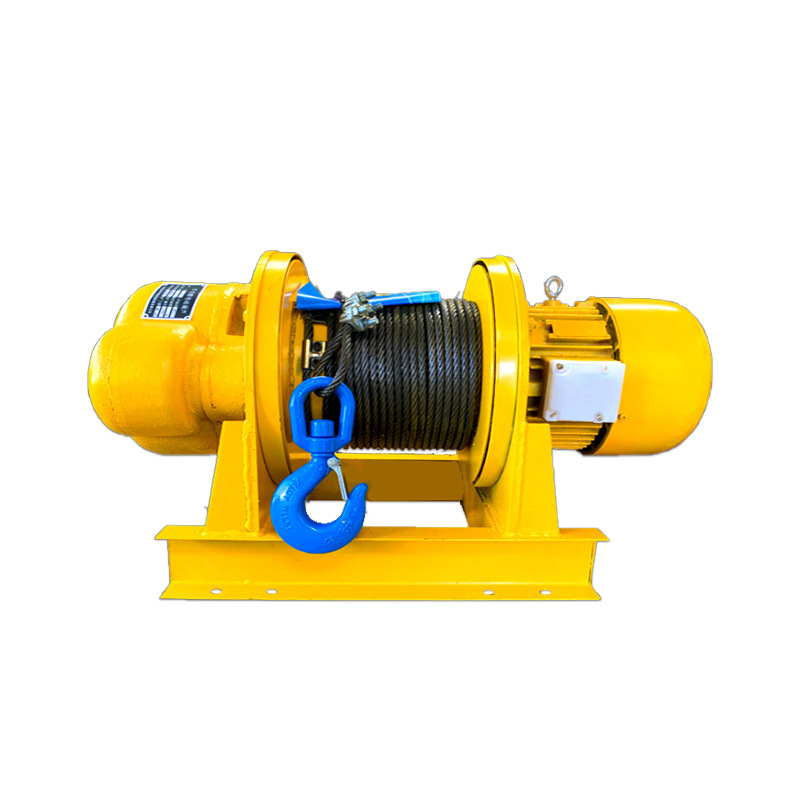

Hook Assembly: Hook with safety latch to prevent accidental detachment of slings.
Base: Heavy-duty I-beam or steel plate welded base, rigid structure, easy installation.
Electrical Control: Standard pendant control; optional remote control or control cabinet available.

Applications

Construction Sites: Hoist frame material lifting, small component installation
Warehouses & Depots: Cargo handling, long-distance traction
Small Ports: Mooring, material handling
Factory Workshops: Equipment maintenance lifting, workstation material transfer
Agricultural & Hydraulic Engineering: Small gate operation, agricultural material lifting
