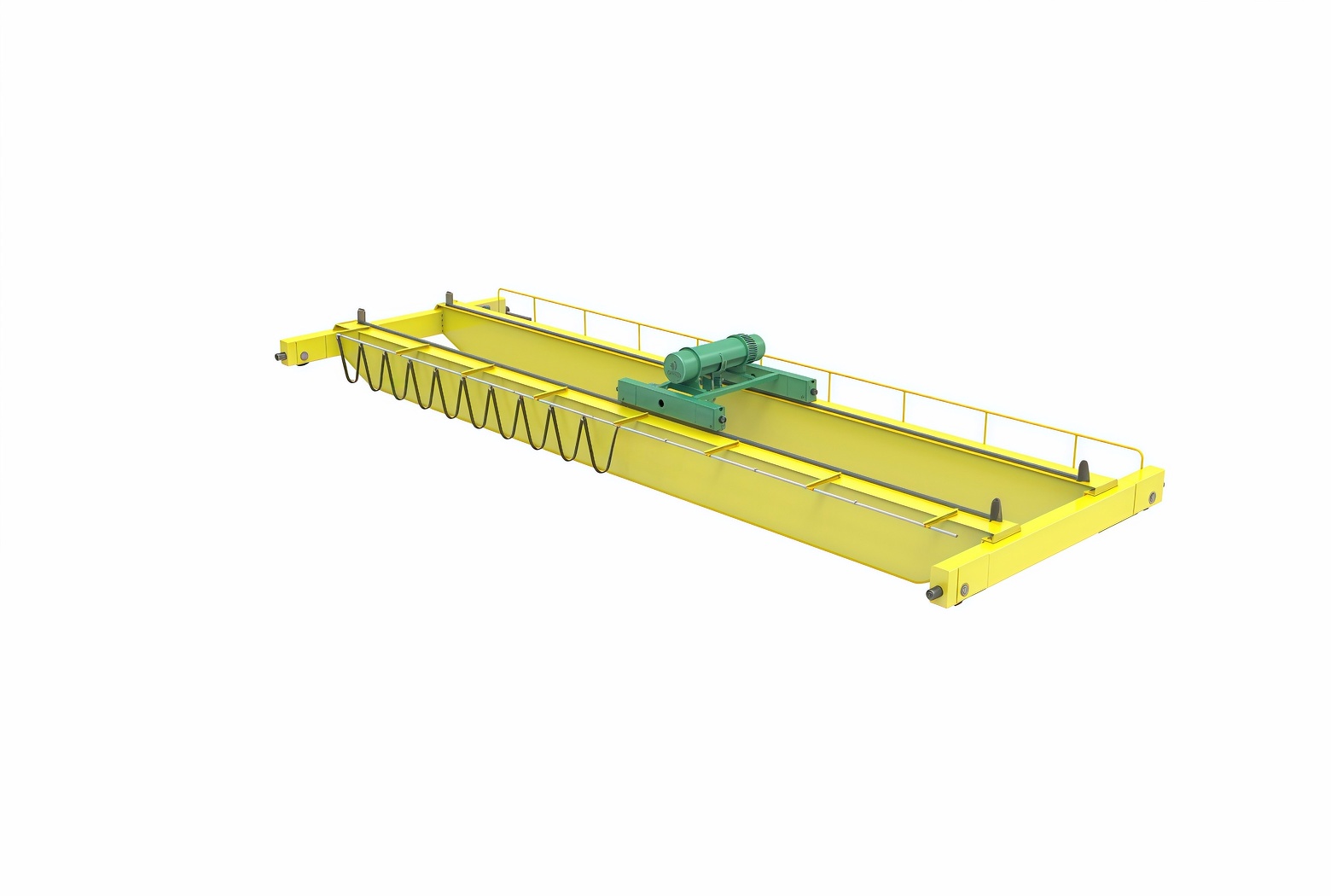

LH Double Girder Overhead Crane With Hoist Trollet

LH Double Girder Overhead Crane With Hoist Trollet

Product Type:	LH
Lifting Capacity:	5~50t
Span:	3m~35m
Lifting Height:	1-50m Customizable
Working Class:	A3~A5
Ambient Temperature:	-20~40℃

Customized one is available, just contact us with your detailed requirements.

Overview

LH Hoist Double Girder Overhead Crane is a medium-sized heavy-duty lifting equipment. It adopts a double main girder structure with an electric hoist for lifting, featuring stable load-bearing capacity, suitable for heavy-load material handling in large and medium-sized workshops and warehouses.

Introduction

Complies with GB/T 14405-2011 standard, with an electric hoist as the core lifting mechanism, ensuring smooth operation. Flexible installation and easy operation, suitable for lifting and transferring loads of 5-50 tons.

Features

Double girder structure, strong load-bearing capacity and high stability
Reasonable dead weight, moderate requirements on workshop load-bearing
Dual control (remote/pendant), precise and flexible operation
Equipped with multiple safety devices such as overload limiter and position limiter

Specification

LH Series Single Girder Overhead Crane
Working Class		A3,A4,A5
Capacity	t	5~50
Span	m	3~35
Lifting Height	m	1~50
Lifting Speed	m/min	0.33~8,Single or Dual Speed
Trolley Travelling Speed	m/min	2~30,Single or Dual Speed
Crane Travelling Speed	m/min	2~30，Single or Dual Speed
Control Method		Ground or Cab Control
Power Supply		380V 50HZ 3PHASE or Customized
Temperature	℃	-20~40
Protection Grade		IP44~65

Structural Component

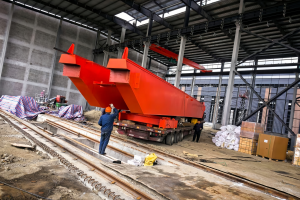

Double Main Girders: High-strength box girders, core load-bearing components

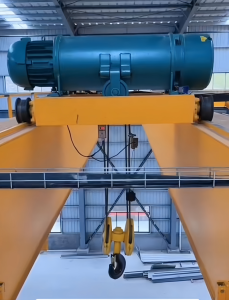

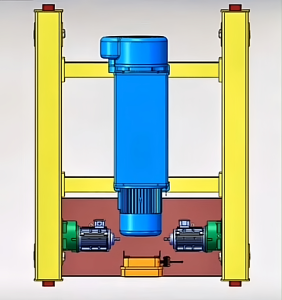

Core lifting component, responsible for lifting and lowering heavy objects

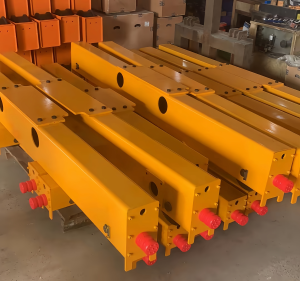

End Carriages & Traveling Mechanism: Drive the whole machine to move along the track
Control System: Remote or pendant, controlling equipment actions
