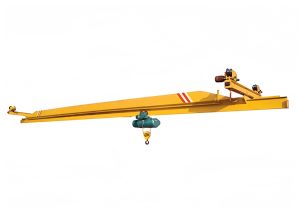

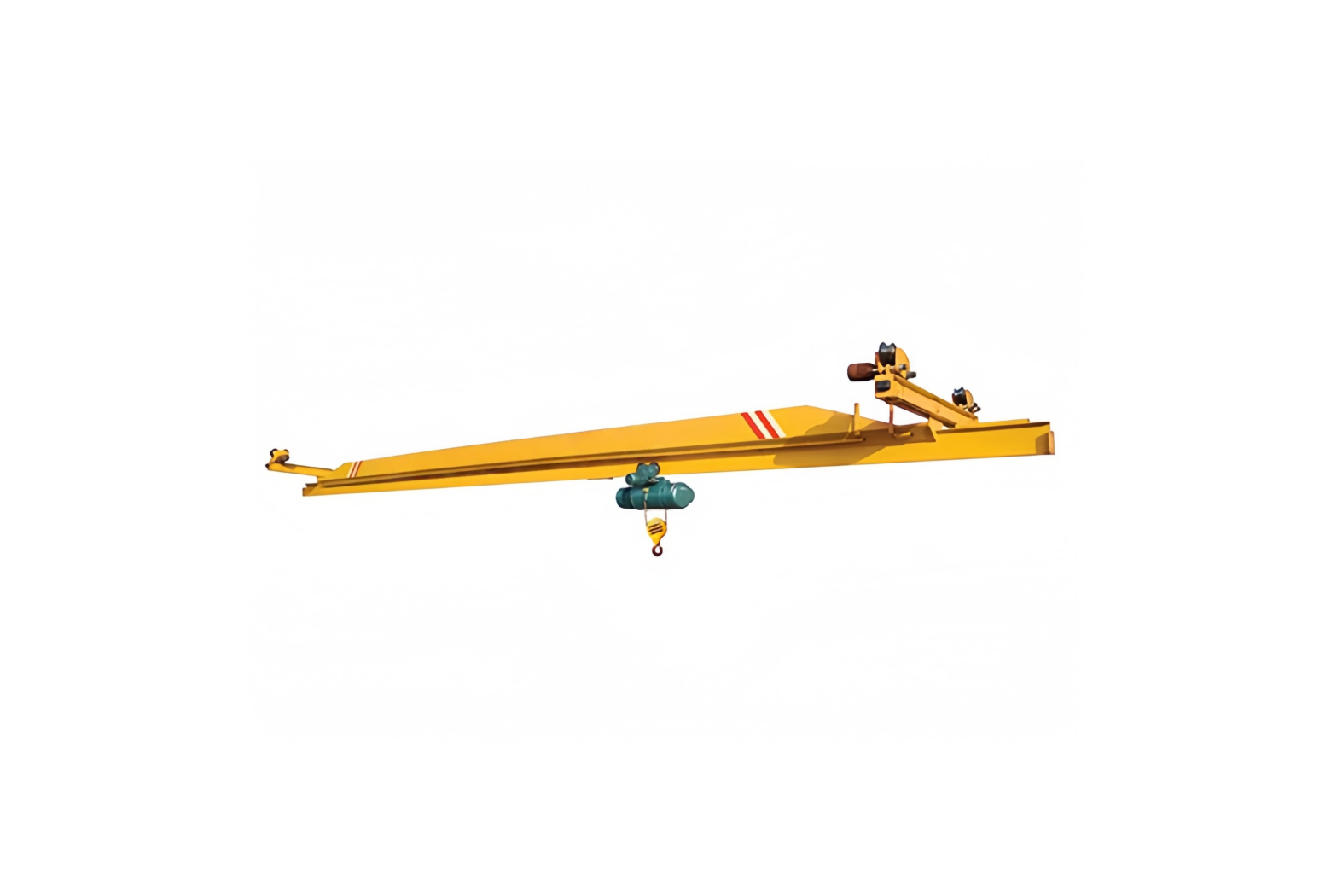

LX Underhung Single Girder Overhead (Monorial) Crane

Product Type:	LX,
Lifting Capacity:	0.5~10t
Span:	3~22.5m
Lifting Height:	According your demands
Working Class:	A3, A4
Ambient Temperature:	-20~40℃

Customized one is available, just contact us with your detailed requirements.

Overview

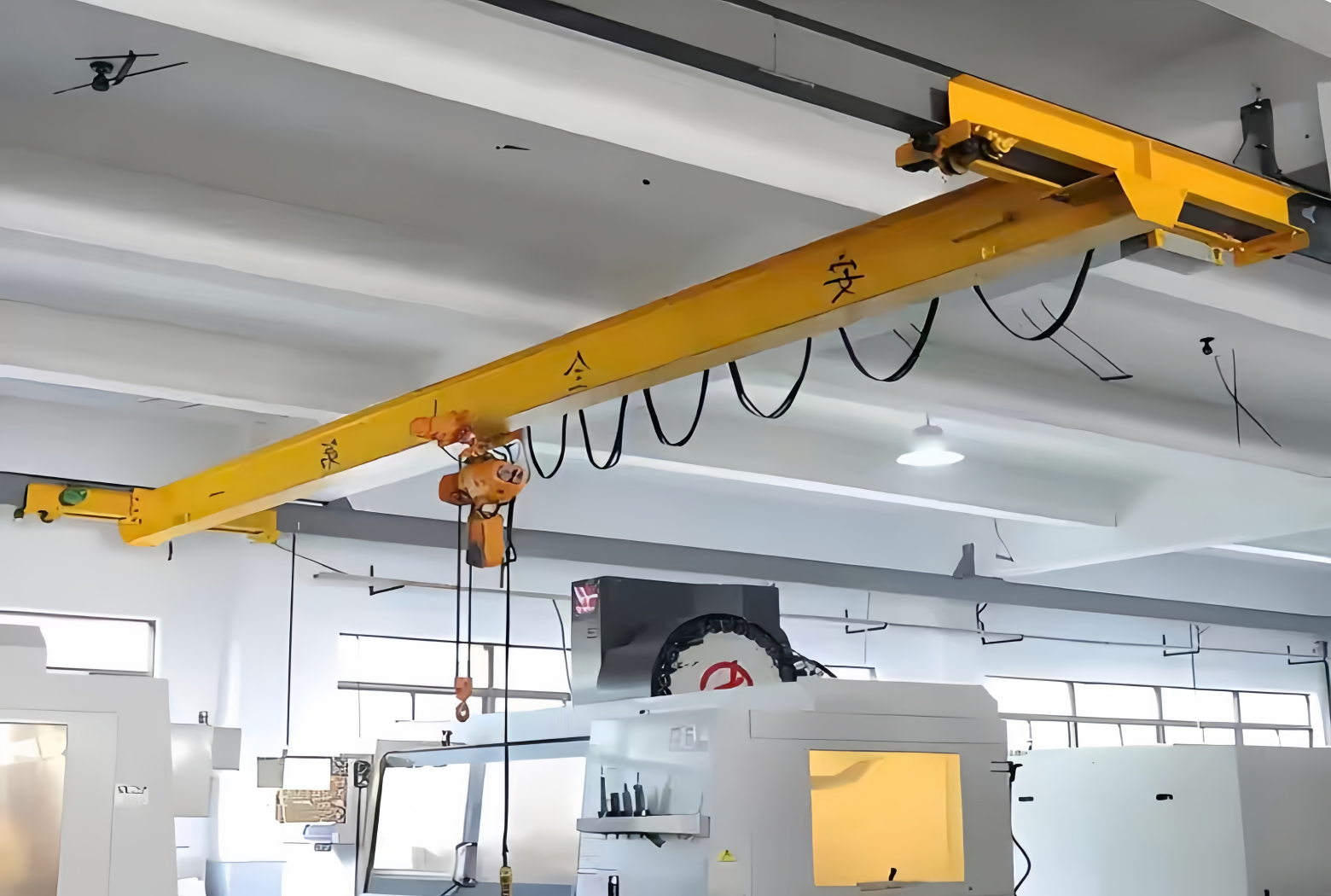

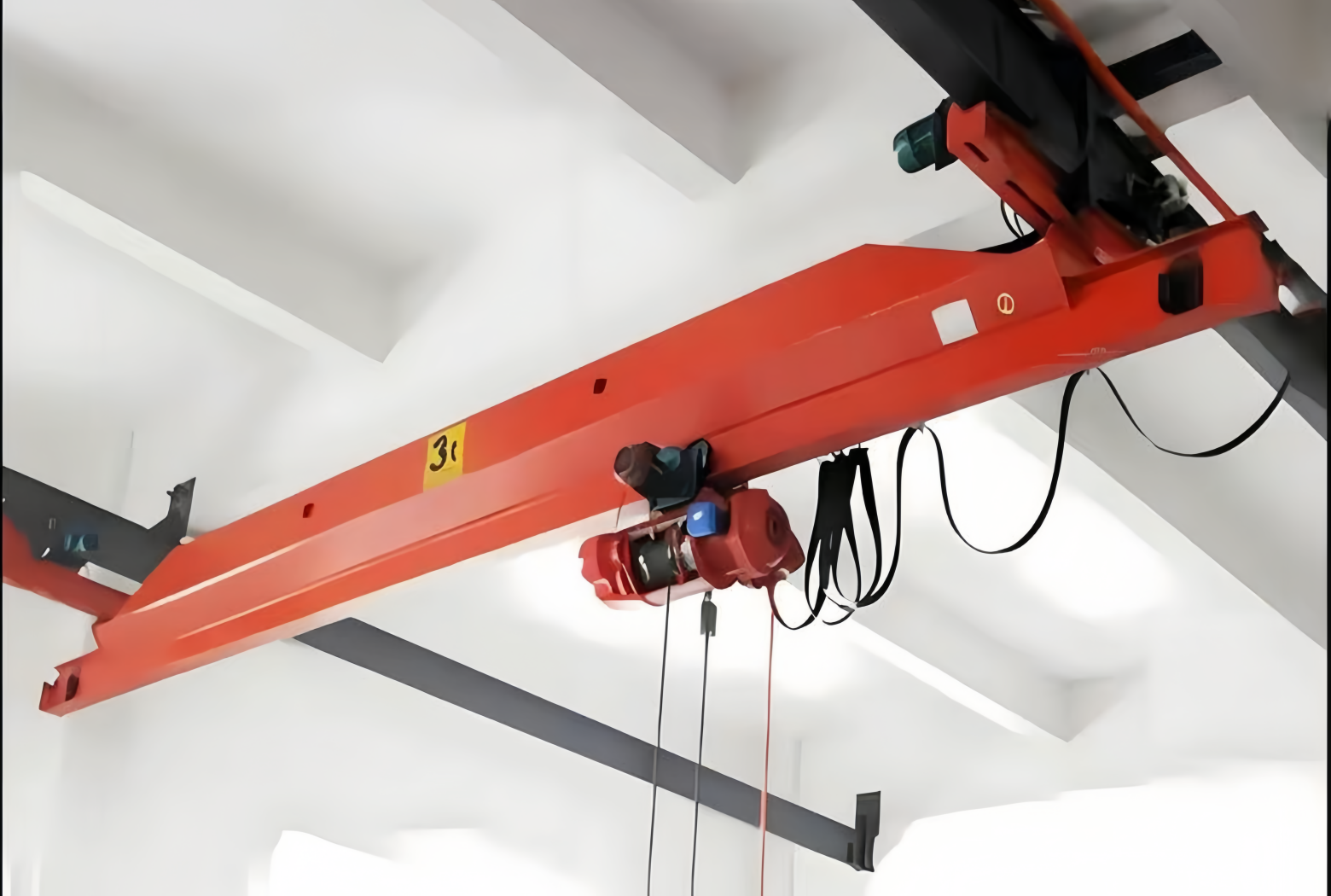

The LX Suspension Crane is a light-duty lifting solution designed to save space. It is directly fixed to the roof truss of the workshop, eliminating the need for support columns. Ideal for factories, warehouses, and assembly lines with limited floor space.

Introduction

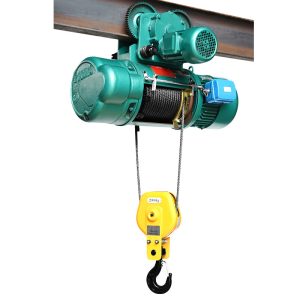

This crane utilizes an electric hoist running on a single I-beam girder. It is installed under the roof beams, moving along the length of the building. It is easy to install, operate, and maintain, making it a cost-effective choice for lifting loads from 0.5 to 10 tons.

Features

Space Saving: Hangs from the roof, freeing up valuable floor space.
Low Cost: Lightweight structure reduces building load and installation costs.
Easy Operation: Can be controlled by a wireless remote or a pendant controller.
Reliable Safety: Equipped with limit switches and emergency stop for protection.
