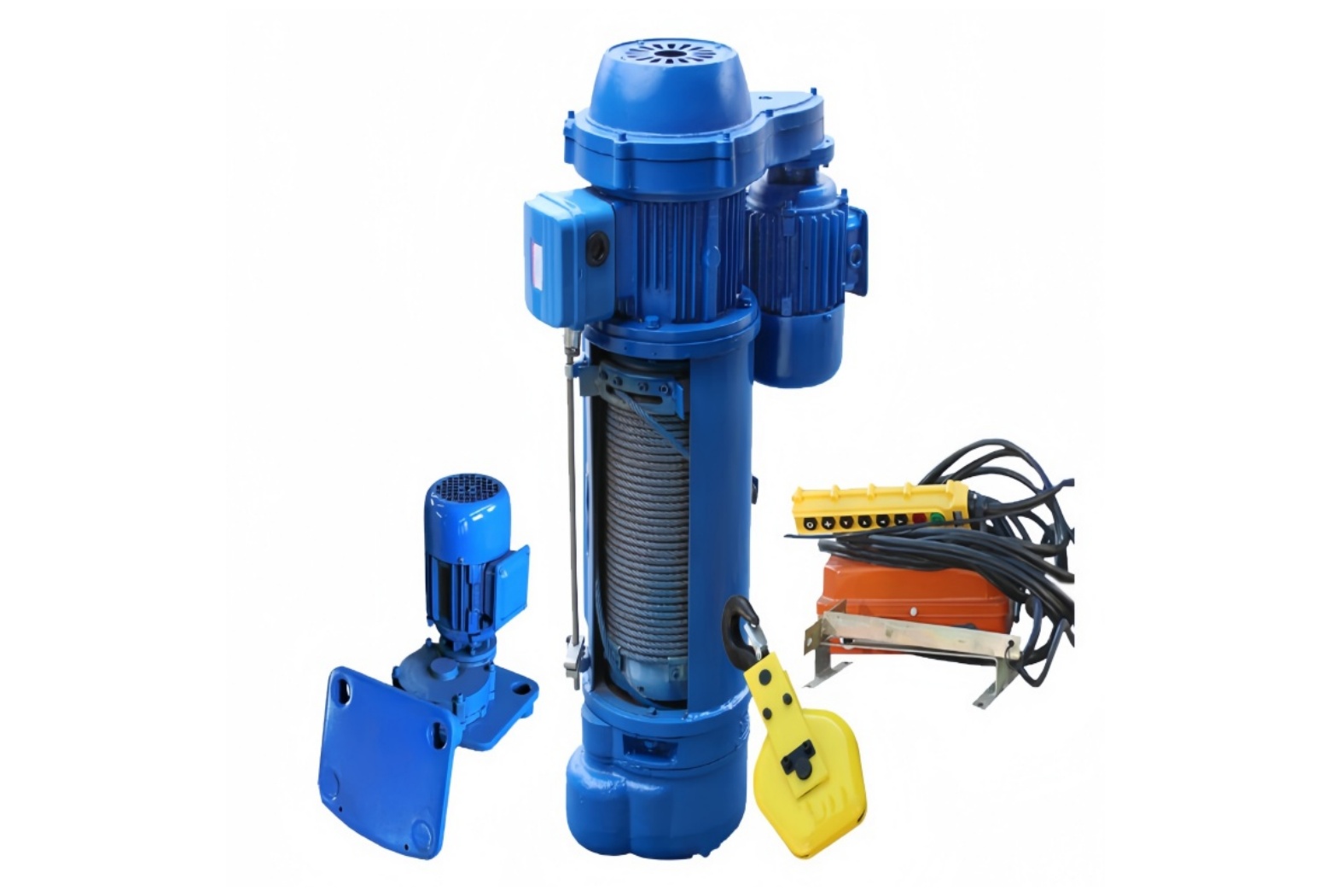

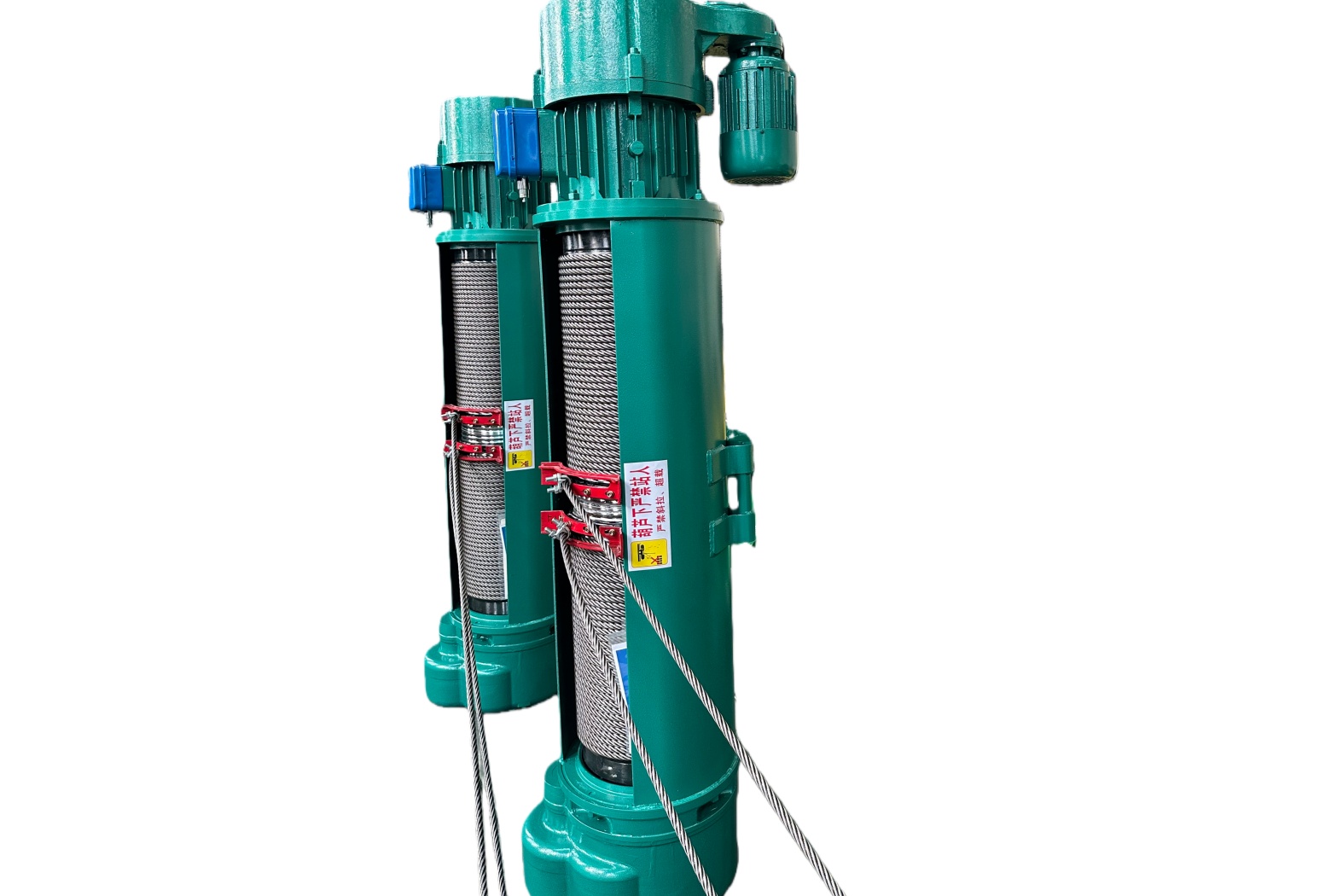

MD Double Speed Electric Hoist

Product Type:	MD1
Lifting Capacity:	0.5~32t
Span:	/
Lifting Height:	6~100m
Working Class:	M3,M4
Ambient Temperature:	-20~40℃

Customized one is available, just contact us with your detailed requirements.

Overview

MD double speed wire rope electric hoist is a versatile light-duty lifting component, widely matched with overhead, gantry and jib cranes for precise material lifting in workshops, warehouses and assembly lines.

Introduction

Adopting double-speed (fast/slow) lifting design and complying with national standards, this hoist features compact structure and reliable performance. Suitable for 0.5-32 tons load lifting, it meets both efficient transfer and precise positioning needs.

Features

Dual-speed adjustable, fast for transfer, slow for precise positioning
High-strength wire rope, strong load-bearing and long service life
Compact structure, easy installation and maintenance
Equipped with overload and limit devices, safe and reliable

Specification

Model		MD1
Capacity		Tons	0.25	0.5	1	2	3	5	10	16
Hoisting height		M	3,6,9	6,9,12	6,9,12,18,24,30				9,12,18,24,30
Hoisting speed		M/MIN	0.8/8	0.8/8	0.8/8				0.7/7	0.35/3.5
Travel speed		M/MIN	20	20/30	20/30	20/30	20/30	20/30	20/30	18
Wirerope		Dia.(mm)	3.6	4.8	7.4	11	13	15	15	17.5
Wirerope		Spec.	6×39	6×37+FC	6×37+FC				6×37+FC	6×37+FC
Hoisting motor	Type	Type	ZD112-4	ZDS1 0.2/0.8	ZDS1 0.2/1.5	ZDS1 0.4/3.0	ZDS1 0.4/4.5	ZDS1 0.8/7.5	ZDS1 1.5/13	ZDS1 1.5/13
	Power	Power(kW)	0.4	0.2/0.8	0.2/1.5	0.4/3.0	0.4/4.5	0.8/7.5	1.5/13	1.5/13
	Rotation speed	Rotation speed(r/min)	1380	1380	1380	1380	1380	1400	1400	1400
	Current	(A)	1.25	0.72/2.4	0.72/4.3	1.25/7.6	2.4/11	2.4/18	5.2/30	5.2/30
Travel motor	Type	Type	ZDY1 10-4	ZDY1 11-4	ZDY1 11-4	ZDY1 12-4	ZDY1 12-4	ZDY1 21-4	ZDY1 21-4	ZDY1 21-4
	Power	Power(kW)	0.06	0.2	0.2	0.4	0.4	0.8	0.8×2	0.8×2
	Rotation speed	Rotation speed(r/min)	1400	1380	1380	1380	1380	1380	1380	1380
	Current	Current(A)	0.3	0.72	0.72	1.25	1.25	2.4	2.4	2.4
Power			AC 380V,50HZ,3P

The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

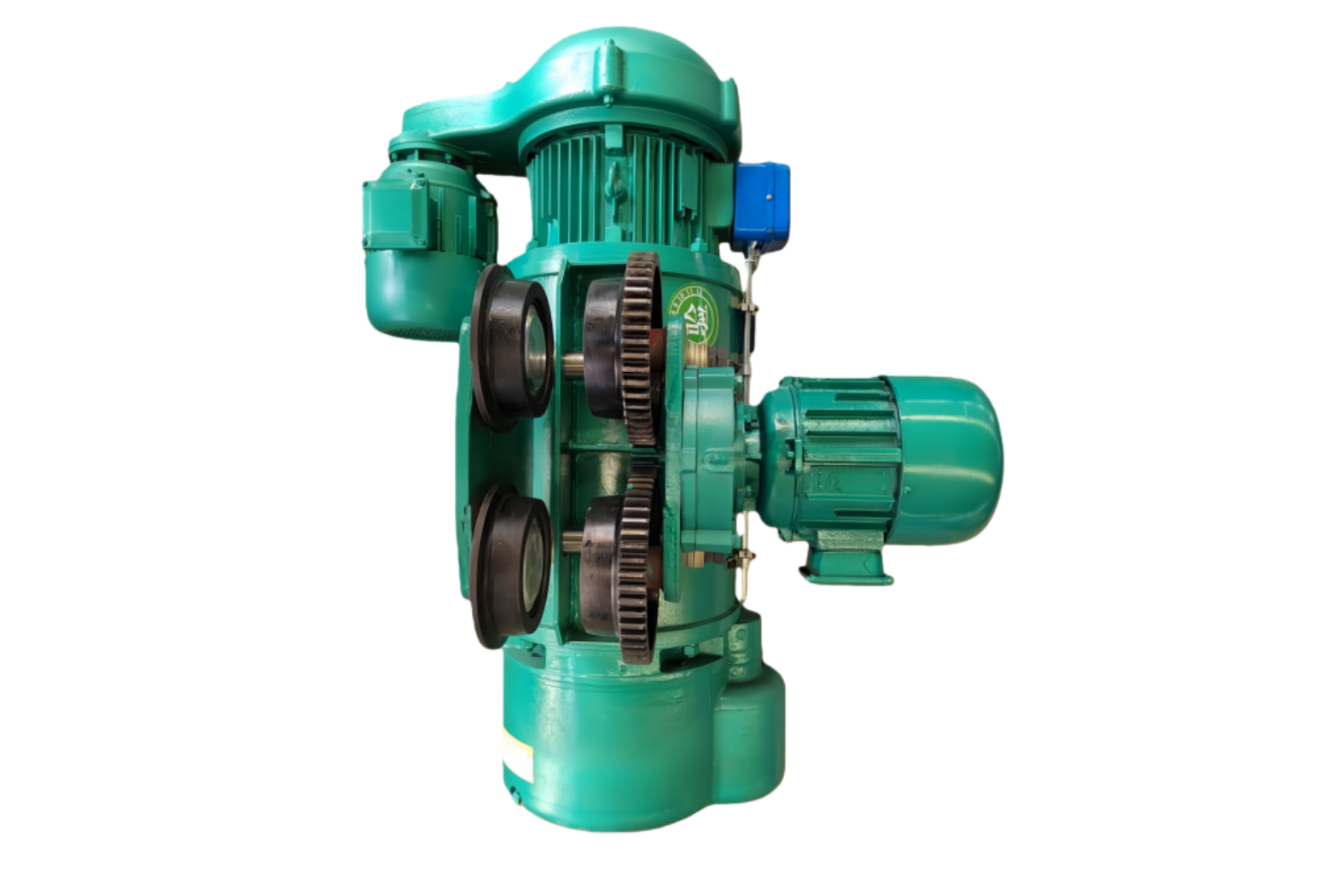

Structural Component

Wire Rope: High-strength, core lifting component
Dual-Speed Motor: High-efficiency three-phase asynchronous motor
Reducer: Hard-tooth surface reducer, stable transmission
Control System: Pendant control, easy speed switching
