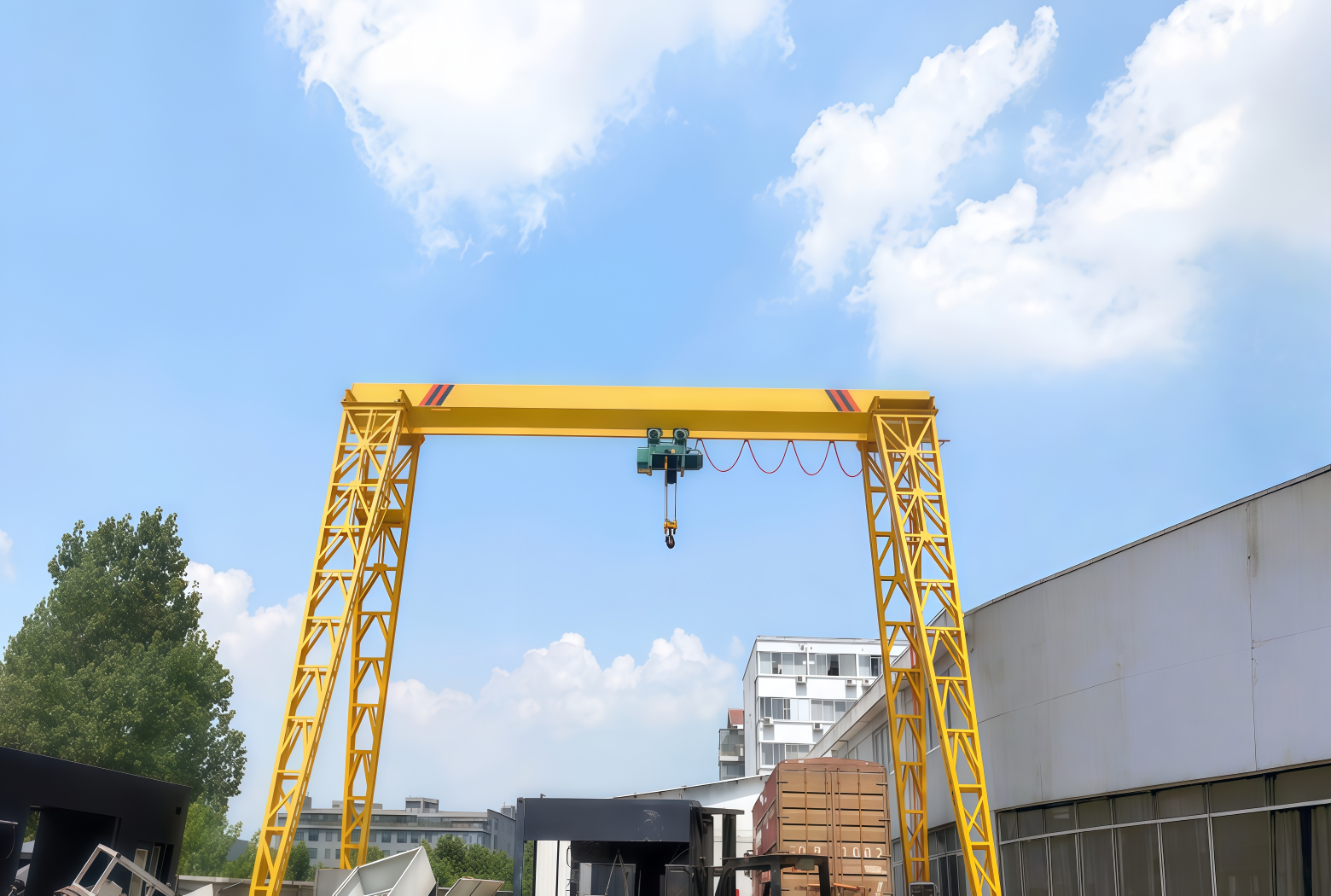

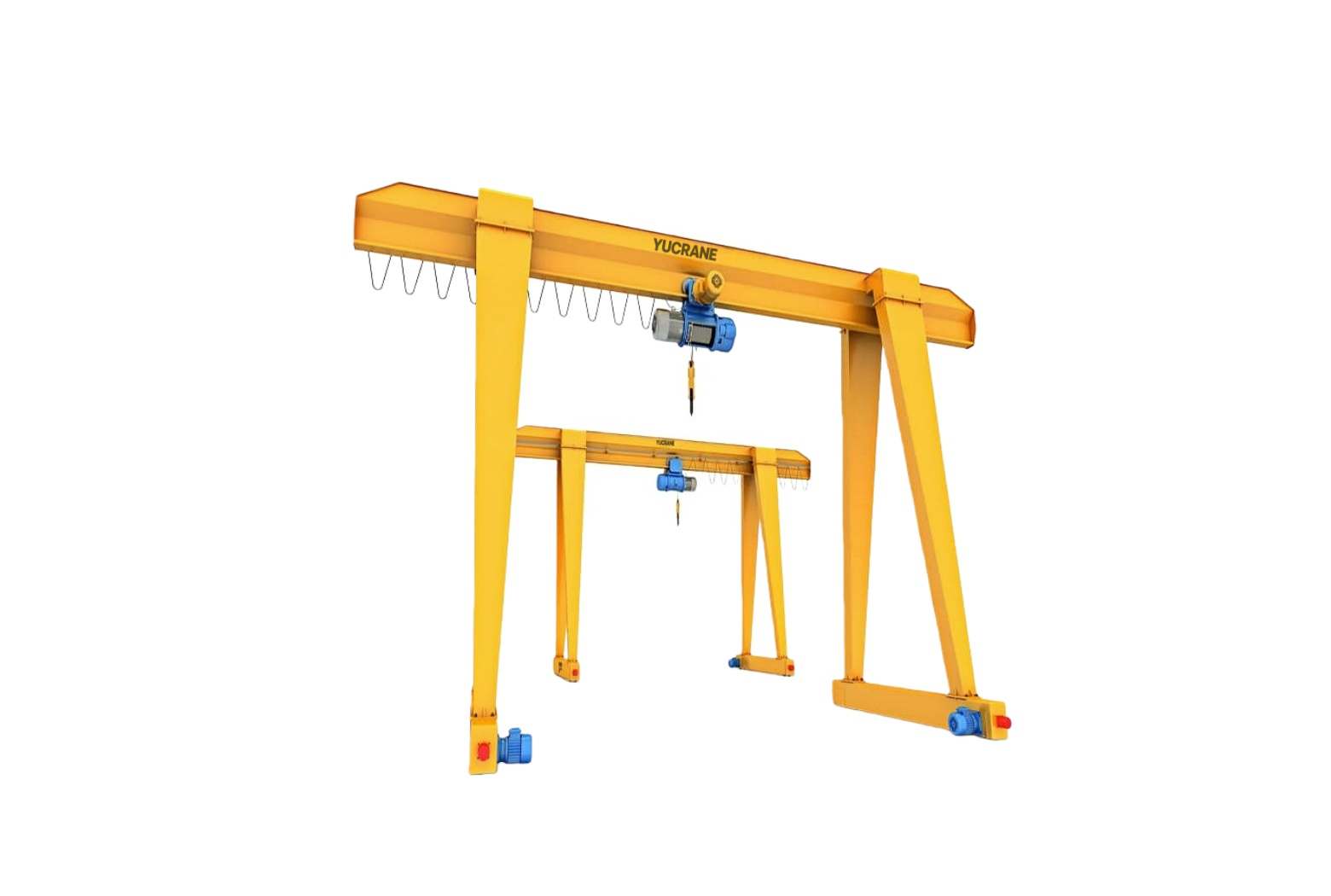

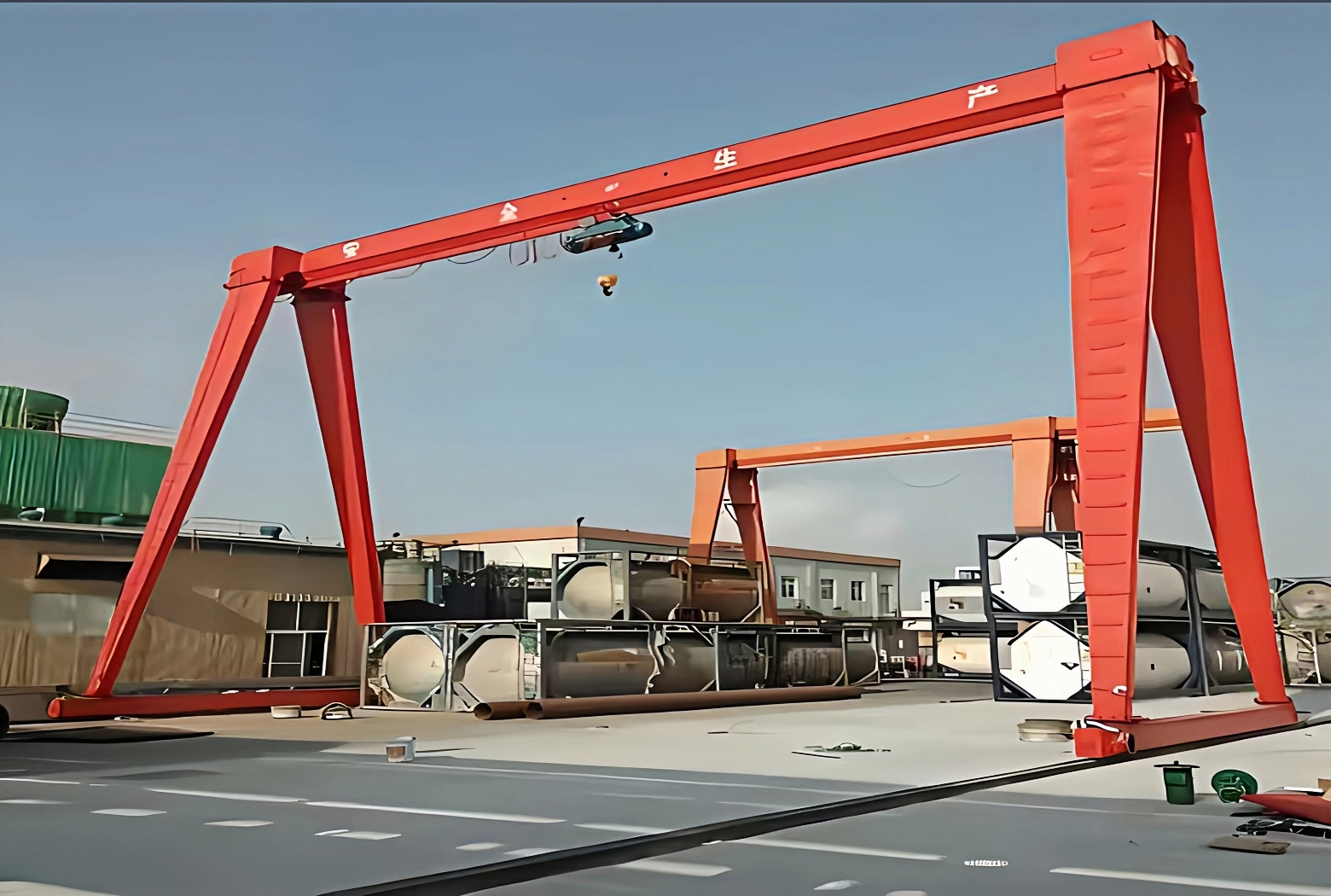

MH Single Girder Hoist Gantry Crane

Product Type:	MH
Lifting Capacity:	1~32t
Span:	8~30m
Lifting Height:	According your demands
Working Class:	A3,A4,A5
Ambient Temperature:	-20~40℃

Customized one is available, just contact us with your detailed requirements.

Overview

MH single girder hoist gantry crane is a light-to-medium duty outdoor lifting equipment. It features compact structure and flexible operation, widely applied in open yards, warehouses and workshops for material handling.

Introduction

Equipped with electric hoist as the core lifting mechanism, this crane complies with national standards. It requires no workshop roof support, with easy installation and maintenance, suitable for lifting 1-32 tons of loads.

Features

Single girder structure, light weight and low investment cost
Floor-standing design, adaptable to various outdoor/indoor open spaces
Dual control modes (remote/pendant), simple and efficient operation
Equipped with overload limiter and limit devices for safe operation

Specification

Working Class		A3,A4,A5
Capacity	t	0.5~32
Span	m	3~35
Lifting Height	m	3~50
Lifting Speed	m/min	0.33~8,Single or Dual Speed
Trolley Travelling Speed	m/min	2~30,Single or Dual Speed
Crane Travelling Speed	m/min	2~30，Single or Dual Speed
Control Method		Ground or Cab Control
Power Supply		380V 50HZ 3Phase or Customized
Temperature	℃	-20~40
Protection Grade		Pendent/Remote Control
Girder Type		Truss or Box Girder
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Structural Component

Single Main Girder: High-strength box/beam structure, core load-bearing component
Electric Hoist: Core lifting part, responsible for lifting and lowering loads

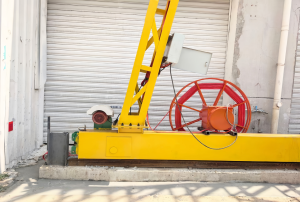

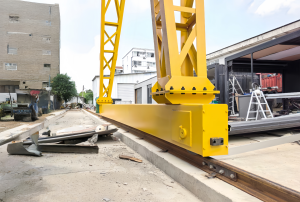

Legs & End Beams: Stable support, driving the crane to move horizontally
Control System: Remote controller or pendant station for operation
