Mobile jib crane

Moblie Jib Crane On Wheels

Product Type: BZY
Lifting Capacity: 0.25t – 5t
Arm Length: 1~3m
Lifting Height: 1~3m
Working Class: A3
Ambient Temperature: -20~40℃

Customized one is available, just contact us with your detailed requirements.

SEND INQUIRY

Overview

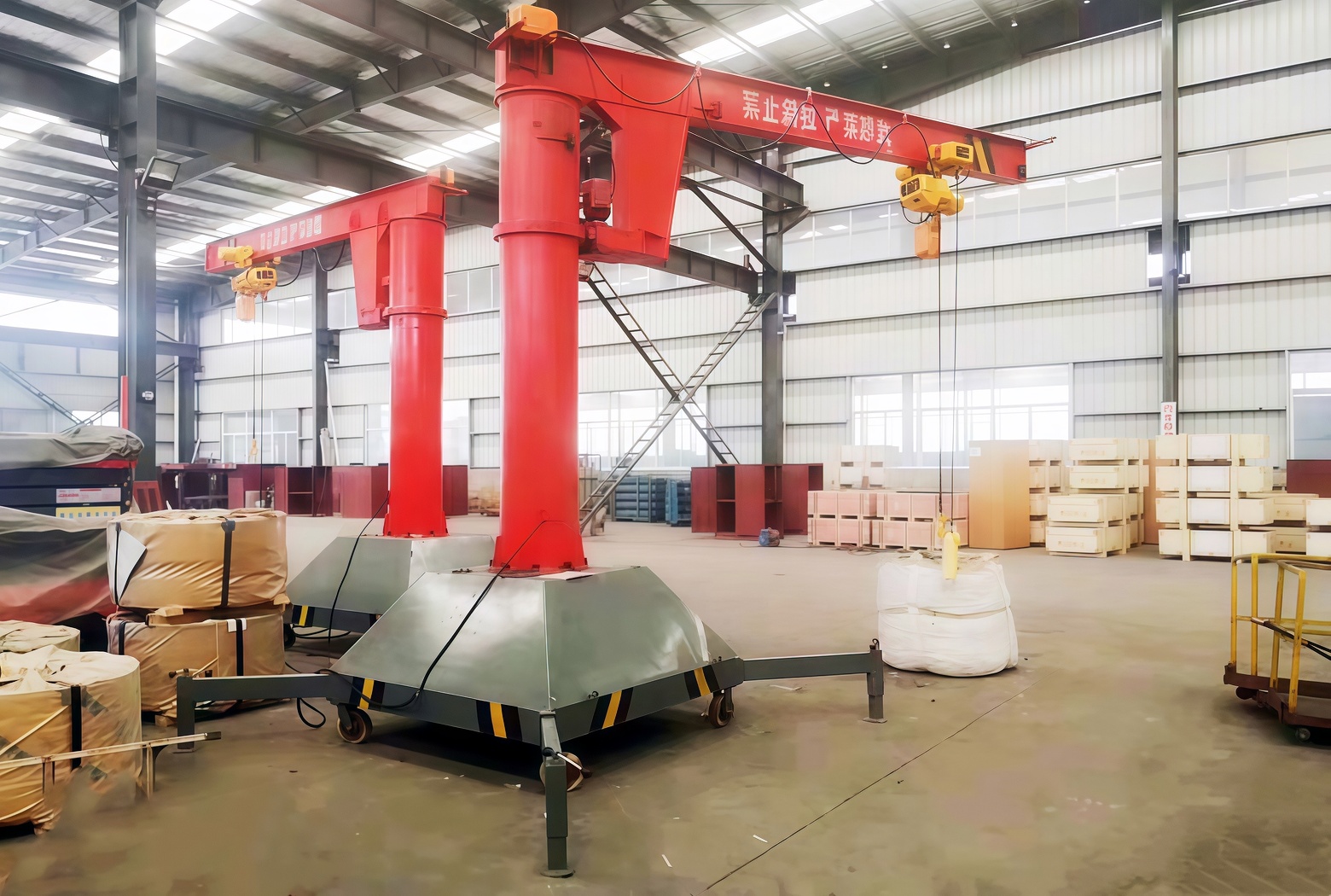

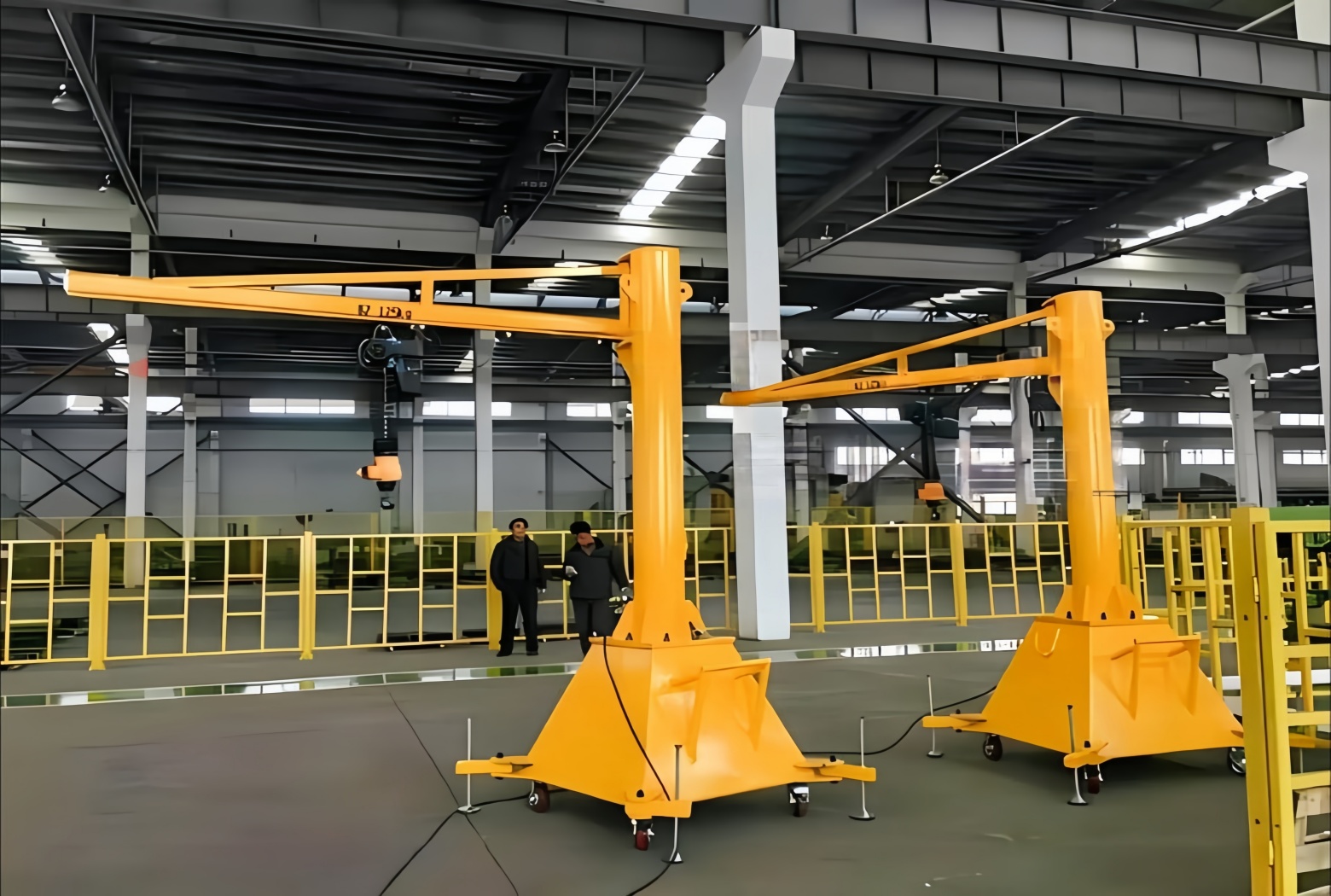

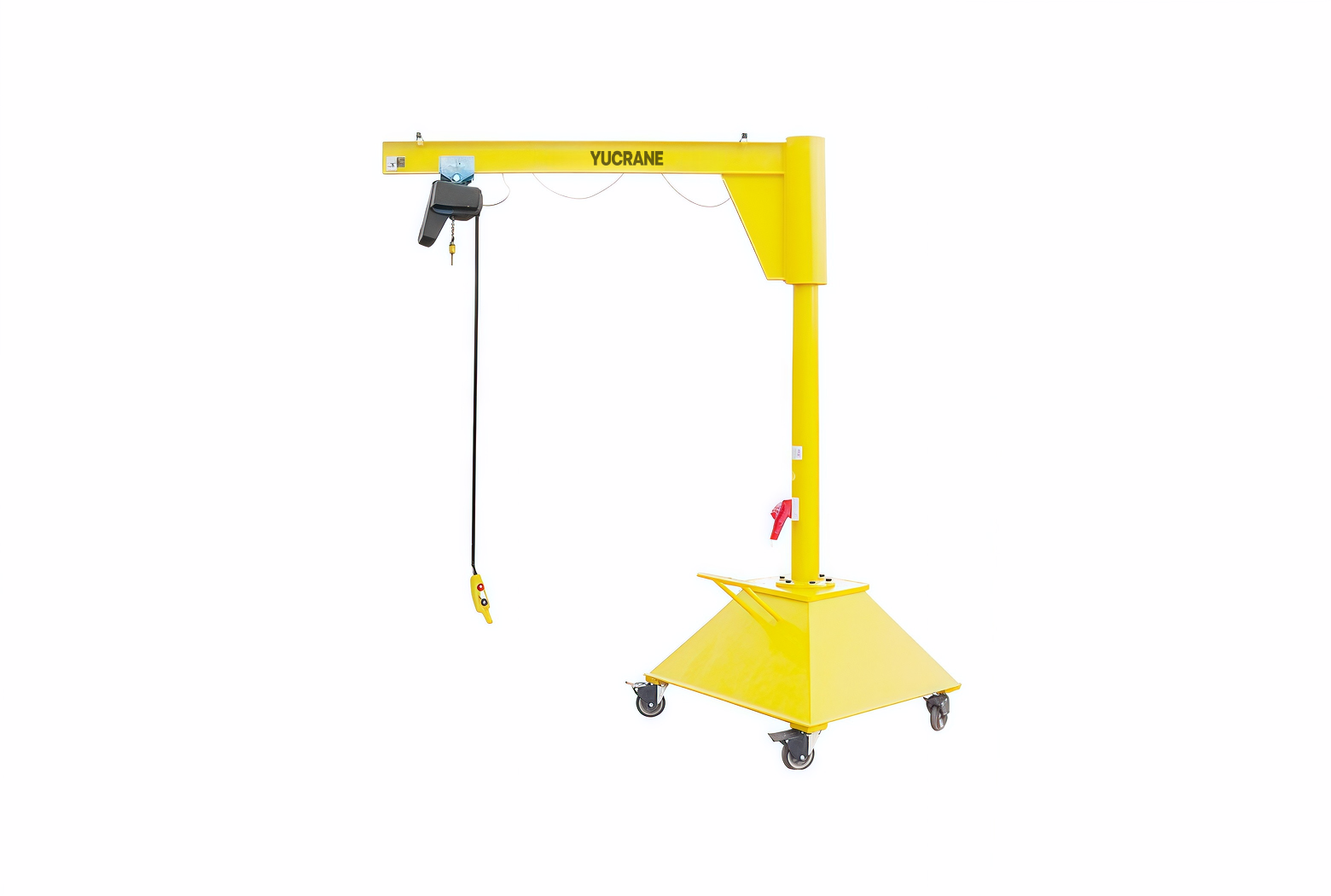

Mobile jib crane on wheels is a portable light-duty lifting equipment. With flexible movement and no fixed installation required, it is suitable for temporary or mobile material handling in workshops, construction sites, maintenance yards and other occasions.

Introduction

Equipped with electric or manual hoist as the lifting mechanism, this crane supports 360° rotation. It features simple operation and quick deployment, applicable for lifting 0.25-5 tons of loads, effectively solving the problem of mobile material handling in different work areas.

Features

  • Wheeled design, flexible movement, adaptable to multiple work sites
  • No fixed installation, quick to use, saving deployment time
  • Compact structure, light weight, easy to store when not in use
  • Equipped with braking and anti-tip devices, ensuring operation safety

Specification

Working Class A3
Capacity t 0.25~5
Effective Radius m 1~3
Lifting Height 1.5~3
Lifting Speed m/min 8m/min or 8/0.8m/min
Power Supply 380V 50HZ 3Phase or Customized
Temperature ℃ -20 to 40
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.



Structural Component

  • Jib Arm: High-strength steel, core load-bearing component
  • Hoist: Electric/manual hoist, core lifting part
  • Wheel Base & Casters: Heavy-duty casters with brakes, ensuring stable movement and positioning
  • Rotating Mechanism: Enable 360° flexible rotation of the jib arm
  • Control System: Pendant or manual control, simple and convenient
