Multi-Purpose Hoist Winch

Product Type:	KM
Lifting Capacity:	0.1- 3t
Span:	/
Lifting Height:	According to your demands
Working Class:	M3,M4,M5
Ambient Temperature:	-20~60℃

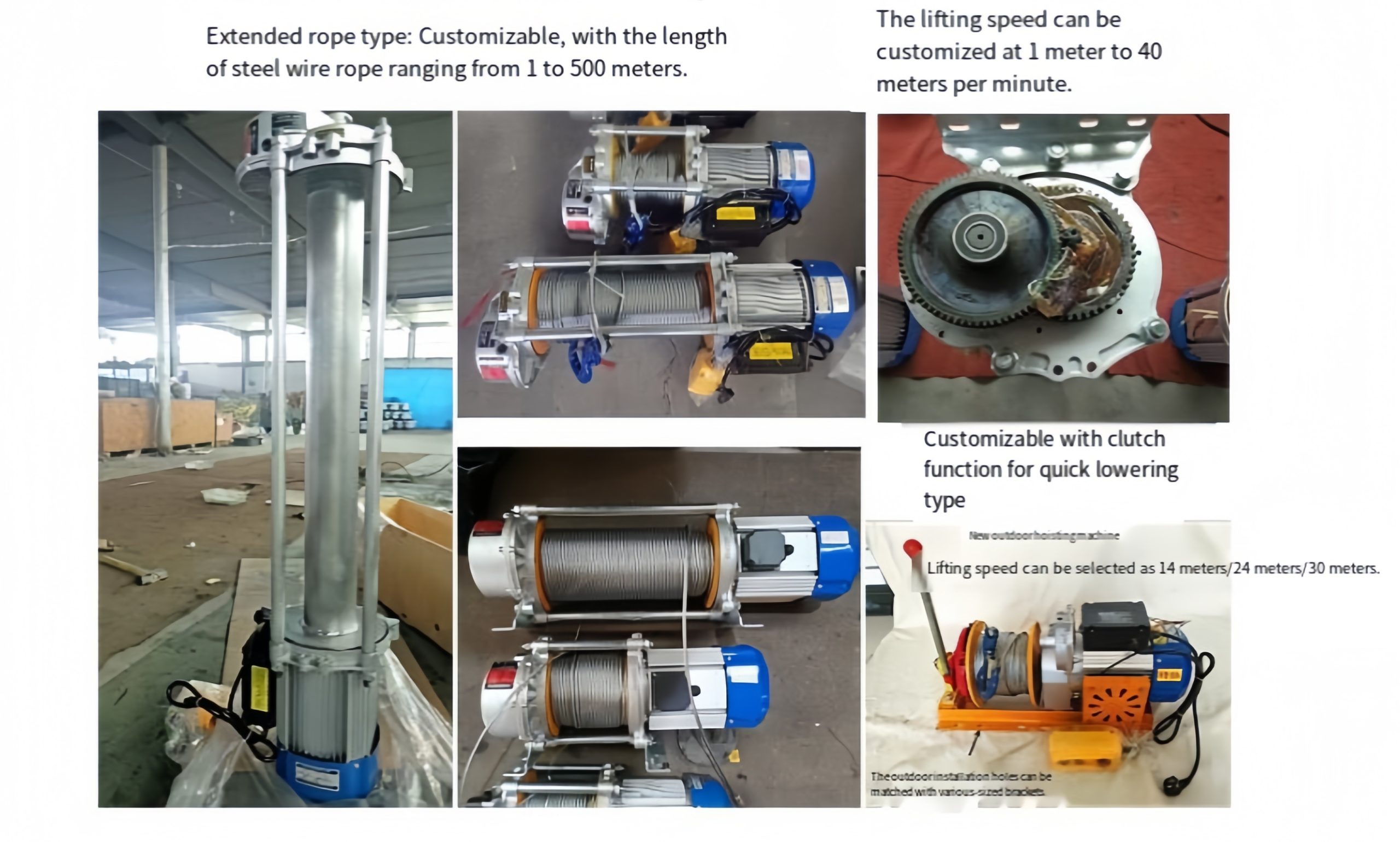

Customized one is available, just contact us with your detailed requirements.

Overview

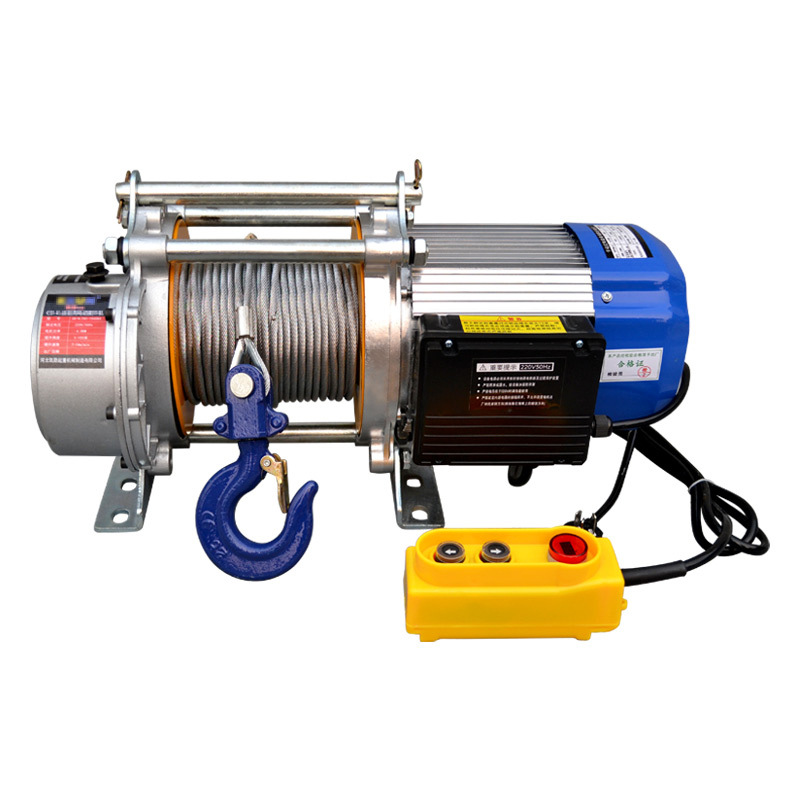

The Multi-Purpose Electric Hoist is a new type of light-duty lifting equipment featuring an all-aluminum housing design. It integrates the main functions of electric hoists and winches, offering advantages such as small size, light weight, compact structure, fast heat dissipation, and convenient operation . Powered by a side-magnet brake motor combined with a speed changer to drive the drum, it achieves lifting and traction of goods . The power supply can be either household 220V or industrial 380V, making it widely applicable for material handling in construction, decoration, warehouses, small factories, and mines .

Introduction

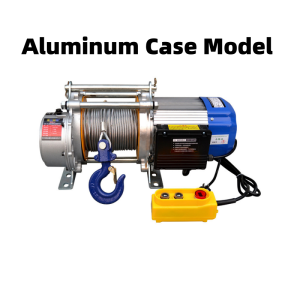

The Aluminum Housing Multi-Purpose Electric Hoist mainly consists of a motor, gearbox, drum, wire rope, hook, and base . Its core design highlight is the all-aluminum housing, which, compared to traditional iron housing motors, offers significant advantages such as faster heat dissipation, lighter weight, and higher efficiency . The motor drives the drum to rotate forward and reverse through the gearbox, enabling the lifting and traction of goods. The hoist typically uses electromagnetic braking (side-magnet brake) for braking, with automatic braking upon power failure, ensuring safe and reliable operation . This product can be used with a single rope or double rope; when used with double rope, the lifting capacity doubles .

Features

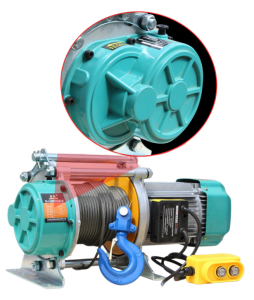

All-Aluminum Body, Excellent Heat Dissipation: Aluminum housing provides fast heat dissipation, greatly enhancing motor efficiency and service life, overcoming the heat-prone defect of iron housings .
Pure Copper Motor, Strong Power: Class E insulation, 100% pure copper windings, combined with new YE3 winding technology, ensuring sufficient power, energy saving, and stable heat generation .
Suction Cup Brake, Safe and Reliable: High-tech suction cup brake offers excellent braking performance, long life, simple structure without needing brake gap adjustment. When power is off or the switch is turned off, the suction cup brakes immediately, preventing any slipping .
Planetary Gear Transmission, Wear-resistant and Durable: Planetary gears and transmission plates directly drive the drum. Gears are heat-treated and precision-machined for unique wear resistance. Each gear is supported by bearings, ensuring firmness, durability, and high efficiency .
Double Wire Rope Fixation, Prevents Shedding: PT screws on the drum provide an additional safety measure compared to ordinary rope fixation, effectively preventing wire rope detachment with high strength and safety .
Multi-purpose Mounting Bracket, Flexible Installation: Made of high-grade steel through one-piece stamping, it can be mounted on hoisting frames, elevators, and steel beams .
Multiple Voltage Options: Available with 220V single-phase or 380V three-phase power to meet different site electricity requirements .
Single/Double Rope Dual Use: Lifting capacity doubles when used with double rope, adapting to lifting needs of different weights .

Product Details

Specifications

Product Model	Usage Method	Rated Voltage (v)	Power (kw)	Rated Lifting Capacity (kg)	Lifting Speed (m/min)	Lifting Height (m)	Wire Rope Diameter (mm)	Net Weight (kg)
KM300-600	Single Rope	380	1.1	250	14	30–60	5	30
KM300-600	Double Rope	380	1.1	500	7	30–60	5	30
KM400-800	Single Rope	220	1.8	400	10	30–100	6	34
KM400-800	Double Rope	220	1.8	800	5	30–100	6	34
KM500-1000	Single Rope	220	2.2	400	10	30–100	6	35
KM500-1000	Double Rope	220	2.2	800	5	30–100	6	35
KM500-1000	Single Rope	380	1.5	500	14	30–100	6	48
KM500-1000	Double Rope	380	1.5	1000	7	30–100	6	48
KM750-1500	Single Rope	380	1.5	750	16	30–100	7.7	70
KM750-1500	Double Rope	380	1.5	1500	8	30–100	7.7	70
KM1000-2000	Single Rope	380	3	1000	16	30–100	11	135
KM1000-2000	Double Rope	380	3	2000	8	30–100	11	135

Note: The above parameters are examples of common models; actual products may vary. Standard lifting height is 30 meters, and wire rope length can be customized according to user needs .

Structural Components

Motor: Class E insulation, 100% pure copper windings, aluminum housing. Built-in side-magnet brake automatically brakes when power is off .
Gearbox: Made of ductile cast iron FCD-45, strong ductility, not easily broken. CNC machined for high precision and low resistance . Internal planetary gear transmission with high-strength titanium alloy gears ensures low noise and durability .
Drum Assembly: Planetary gears and transmission plates directly drive the drum, allowing easy wire rope replacement or direction change . PT screws on the drum secure the wire rope to prevent detachment .
Mounting Frame: Multi-purpose frame made of high-grade steel through one-piece stamping, mountable on hoisting frames, elevators, and steel beams . Integrated thickened base with four holes for easy installation .
Hook Assembly: 360-degree rotating hook prevents wire rope twisting due to load rotation. Hook features a safety latch to prevent accidental detachment of slings .

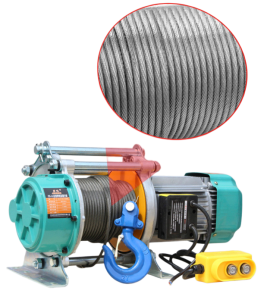

Wire Rope: Cross-wound steel wire rope, diameters vary by model: 5.0mm, 6.0mm, 7.0mm, 8.0mm, etc. .
Electrical Control: Standard pendant controller, optional wireless remote control. Power connection must include a leakage circuit breaker and overload protection .

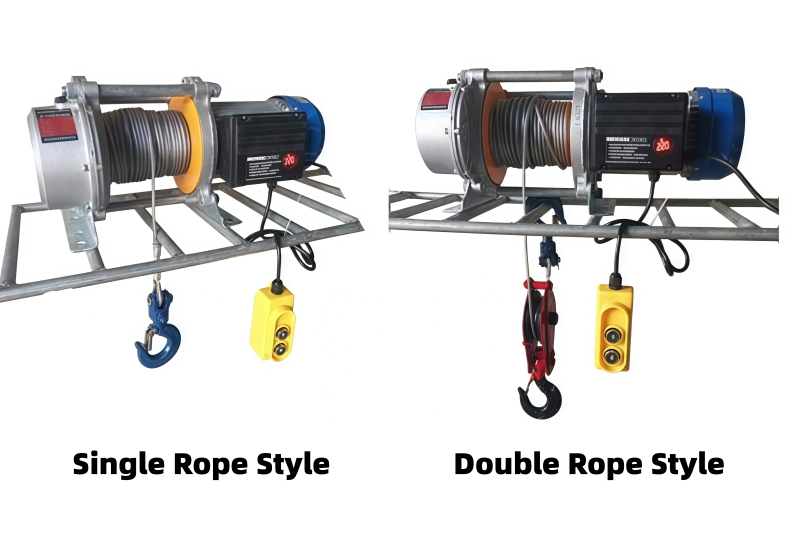

Method of Application

Applications

Construction: Hoisting bricks, floor slabs, and decoration materials in residential buildings
Rural & Civil Use: Well digging soil lifting, agricultural material hoisting
Warehouses & Depots: Cargo handling, loading/unloading, stacking
Factories & Workshops: Equipment maintenance lifting, workstation material transfer, small factory material handling
Shops & Restaurants: Goods carry, decoration lifting
Home Decoration: Transporting decoration materials, furniture between floors
Small Workshops: Material lifting and handling in small processing sites
