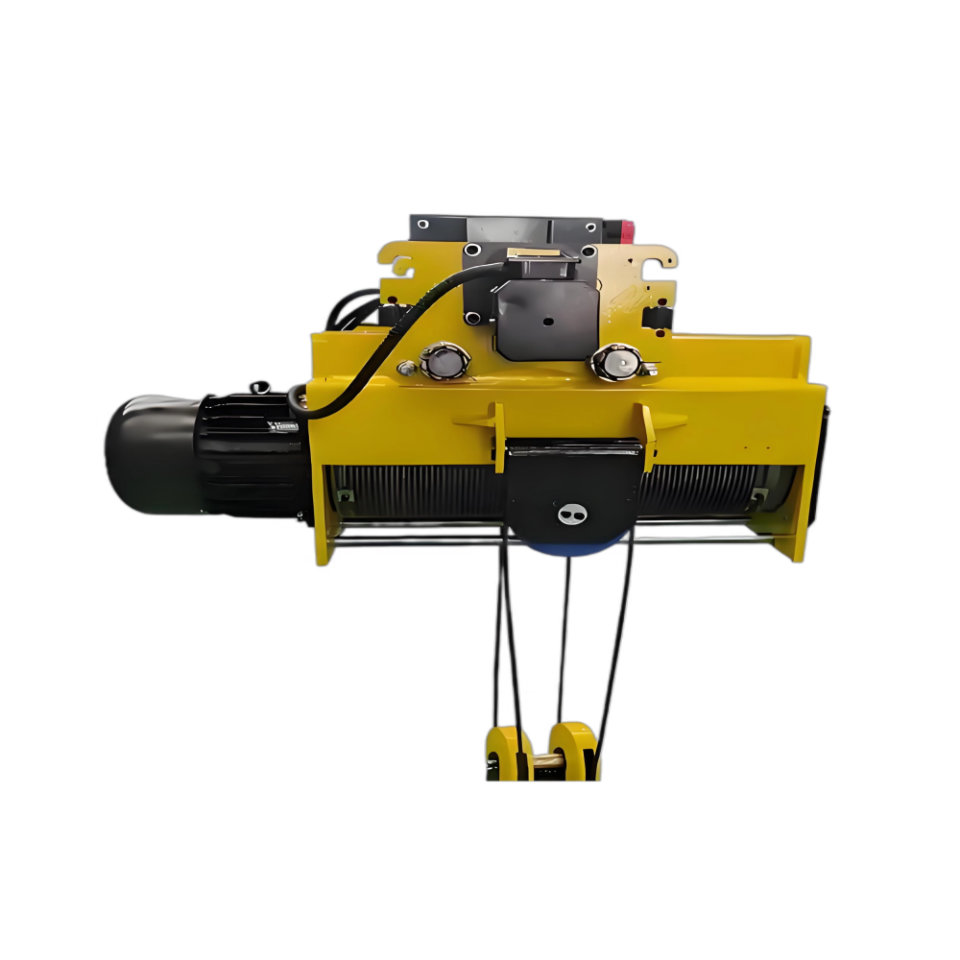

Planetary Electric Hoist

Product Overview

European Planetary Electric Wire Rope Hoist adopts high-precision planetary reducer with compact integrated structure, high transmission efficiency, stable operation, low noise and long service life. It is suitable for single-girder, double-girder and low-headroom cranes, widely used in factories, warehouses, logistics, equipment installation and other scenarios. More energy-saving, safer and less maintenance than traditional hoists, it is a cost-effective upgrade for industrial lifting.

Product Introduction

• Adopt planetary gear transmission system with high torque, small size and efficiency over 92%
• Dual brake system (electromagnetic + mechanical brake), reliable braking without sliding under heavy load
• High-quality wire rope + anti-rope-winding device for smoother lifting and longer service life
• Motor insulation class F, protection class IP54, high temperature and dust resistance
• Available with pendant control / wireless remote control, support variable frequency for precise positioning
• Comply with Chinese / European standards, working duty up to M5 for long-term stable operation

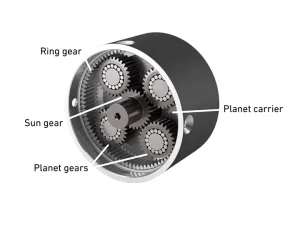

What Is A Planetary Reducer?

Core Structure

• Sun gear (center)
• Planetary gears (rotate around the sun gear)
• Ring gear (outer fixed gear)

Key Advantages

1. High torque in small size

   Much more compact than ordinary gearboxes.

2. High transmission efficiency (up to 92%–96%)

   Saves energy and reduces motor load.

3. Smooth & stable running

   Low noise, low vibration, long service life.

4. Strong overload capacity

   Suitable for heavy-duty working conditions like hoists.

5. Precise transmission

   Stable output, no backlash for precision lifting.

Standard Configuration List

1. Planetary Gearbox
2. Lifting Motor
3. Dual Brake System
4. Wire Rope Drum
5. Load Wire Rope
6. Hook Assembly with Safety Latch
7. Travel Trolley (European/Light-duty)
8. Electric Control Box (Contactor Control)
9. Pendant Control Station
10. Upper & Lower Limit Switch

Optional Parts

• VFD Inverter System (soft start & precise positioning)
• Wireless Remote Control
• Anti-wind device, overload limiter
• Dustproof/waterproof upgrade IP55/IP65
• Custom lifting height
