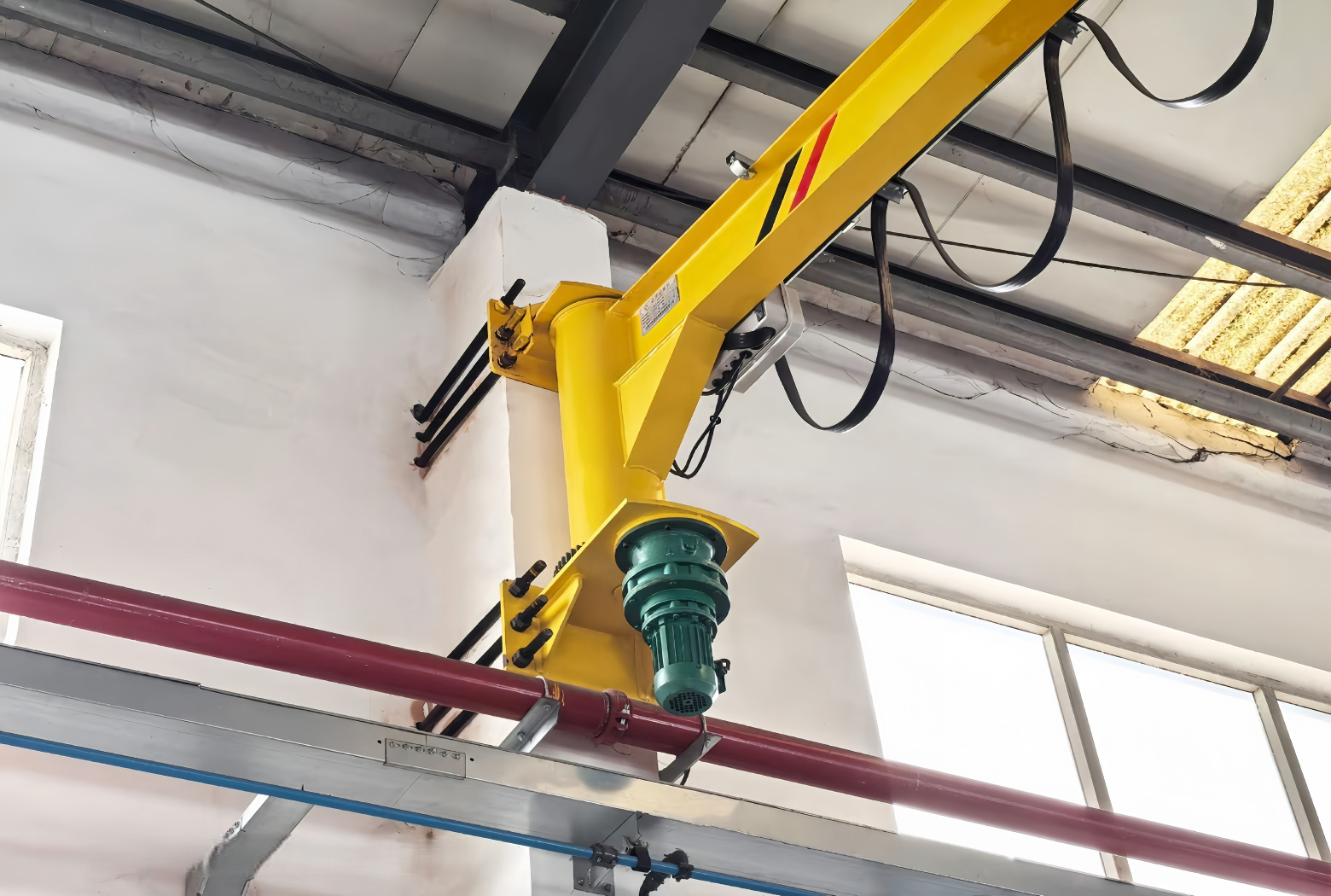

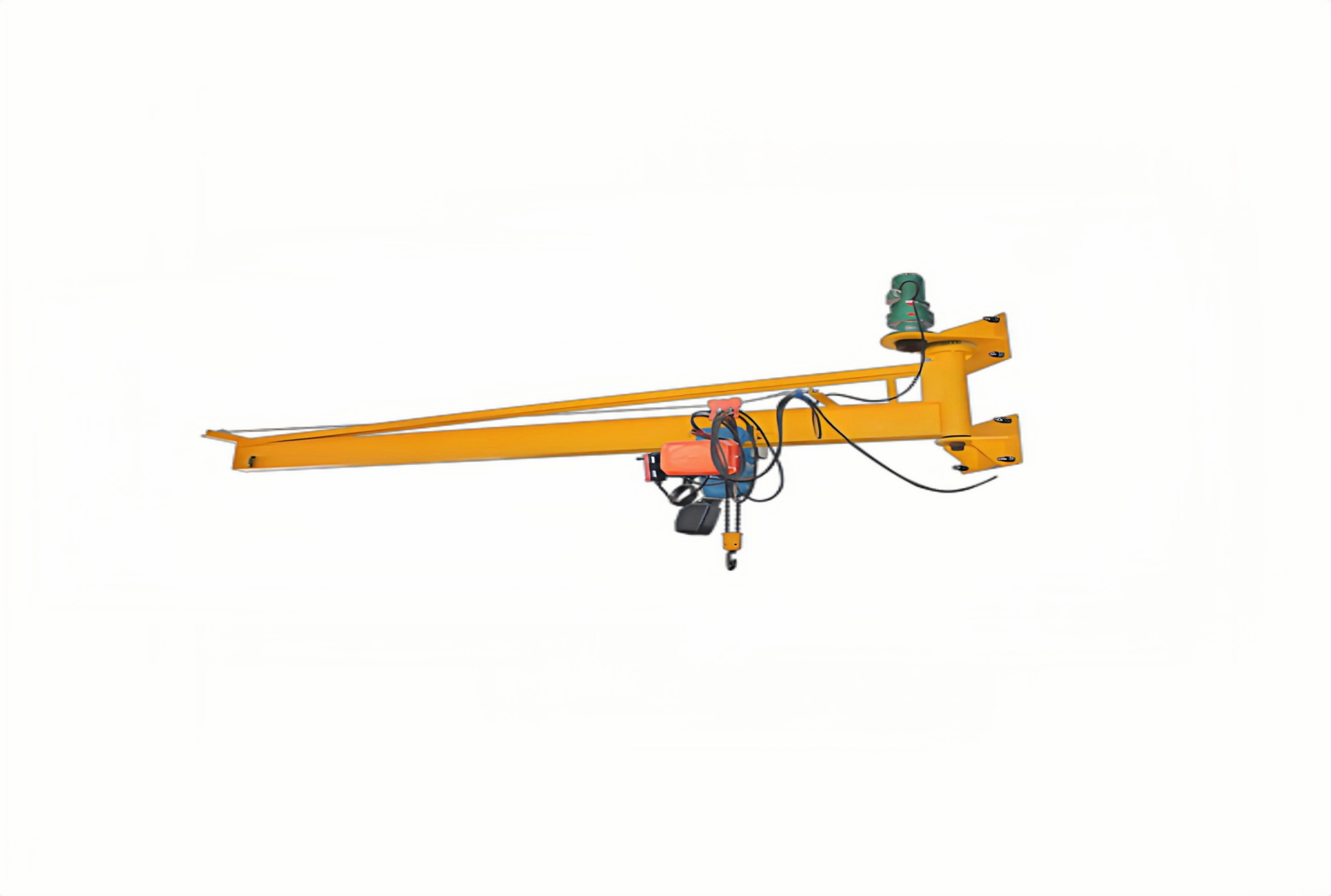

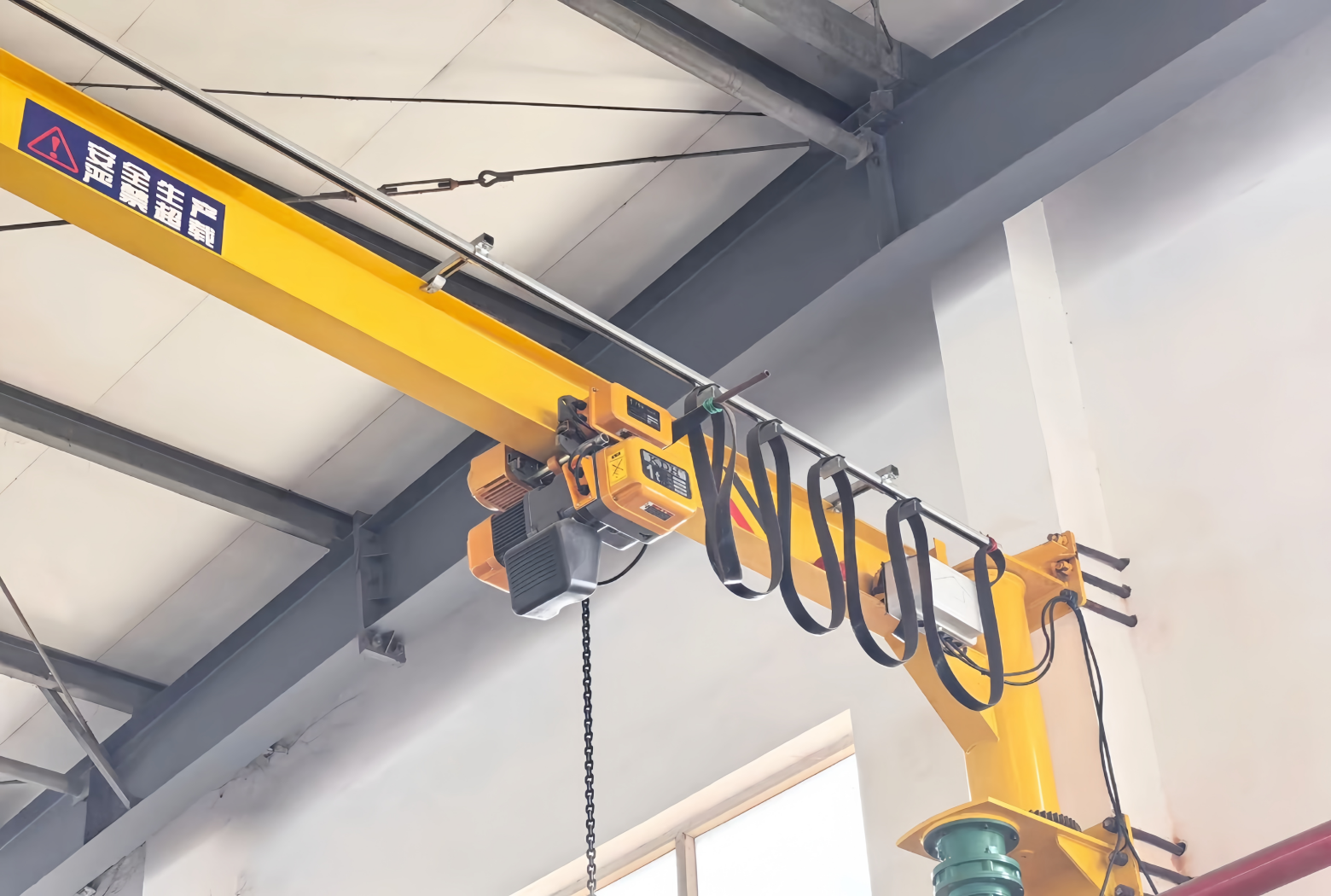

Wall Mounted Jib Crane

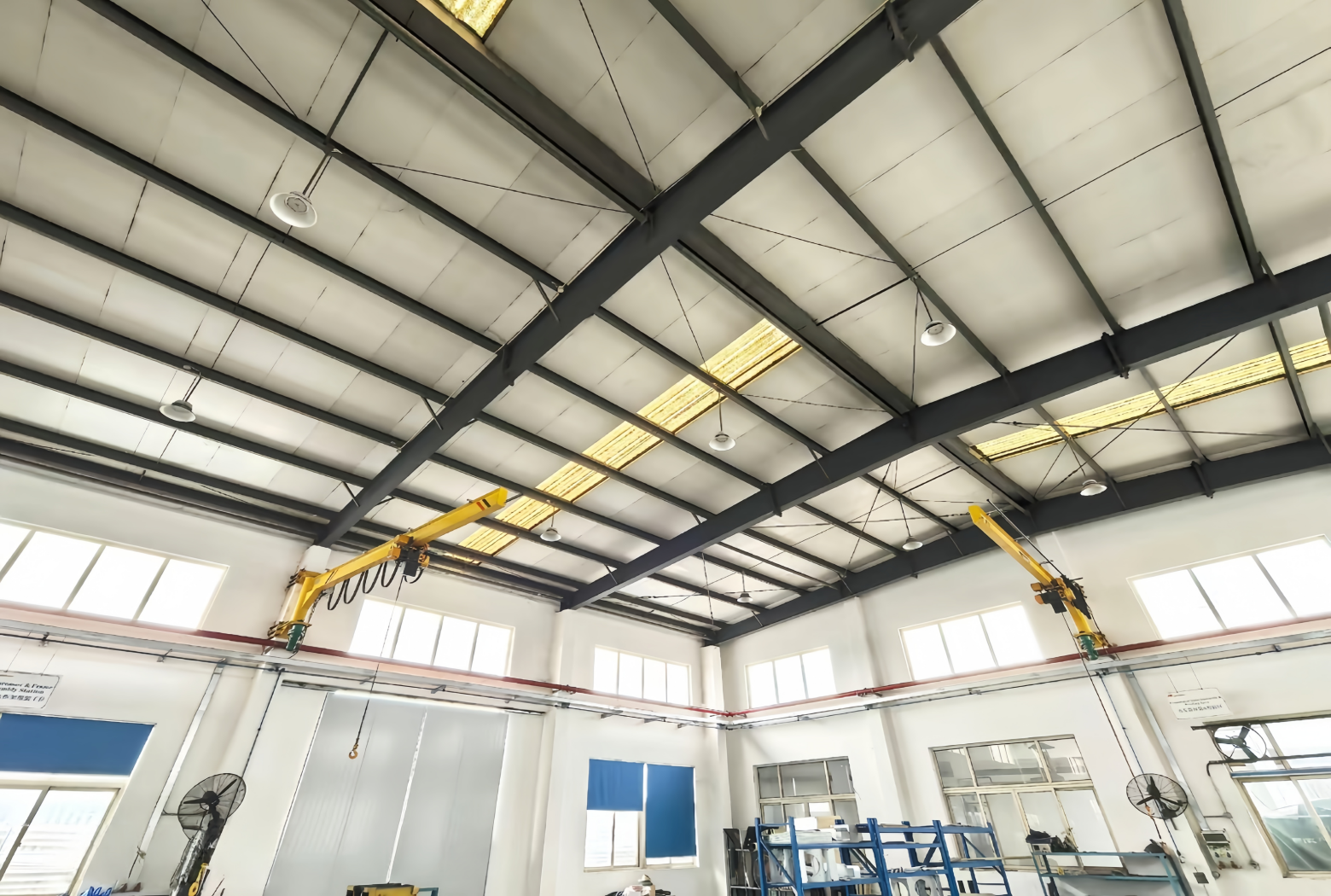

Application of Wall Mounted Jib Crane
Jib Crane
Wall Mounted Crane

Wall Mounted Jib Crane

Product Type: BX
Lifting Capacity: 0.25~5 tons
Span: 3~6 m
Lifting Height: According your demands
Working Class: A3
Ambient Temperature: -20~40℃

Customized one is available, just contact us with your detailed requirements.

SEND INQUIRY

Overview

BX wall mounted jib crane is a light-duty lifting equipment, directly installed on factory walls or concrete columns. It features compact structure and space-saving design, suitable for local material handling in workshops, warehouses and assembly stations.

Introduction

Equipped with electric hoist as the core lifting mechanism, this crane supports 270° or 360° rotation. It is easy to install and operate, applicable for lifting 0.25-5 tons of loads in fixed local areas, effectively improving handling efficiency.

Features

  • Wall-mounted installation, no occupying floor space
  • Flexible rotation, wide local working coverage
  • Simple structure, light weight, low maintenance cost
  • Equipped with safety limit devices to ensure operation safety

Specification

Working Class A3,A4,A5
Capacity t 0.5~5 ton
Effective Radius m 1~8
Lifting Height 3~100
Lifting Speed m/min 0.33~8,Single or Dual Speed
Trolley Travelling Speed m/min 2~30,Single or Dual Speed
Rotation angle ° 0~360
Power Supply 380V 50HZ 3PHASE or Customized
Temperature ℃ -20~60
Protection Grade IP44~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Structural Component

  • Jib Arm: High-strength steel, core load-bearing component
  • Electric Hoist: Core lifting part, responsible for lifting and lowering
  • Wall Mounting Base & Rotating Mechanism: Fix the crane and realize rotation
  • Control System: Pendant or remote control for convenient operation

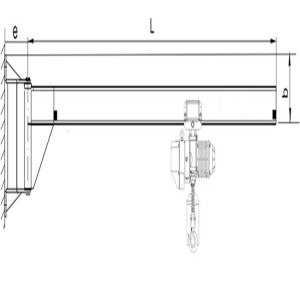

Product Sketch

Product sketch
